Manufacturing Insight: Precision Engineering with Compact CNC Systems

Compact CNC machining centers have become indispensable for rapid prototyping and low-volume production where space efficiency and micron-level accuracy are non-negotiable. At Shenzhen Honyo Prototype, we specialize in deploying these systems to accelerate product development cycles without compromising on the stringent tolerances demanded by aerospace, medical, and electronics sectors. Unlike conventional large-scale CNC platforms, optimized small-format machines deliver exceptional rigidity-to-footprint ratios, enabling sub-10μm positional repeatability even in constrained workshop environments. This capability is critical for manufacturing intricate components such as microfluidic chips, surgical instrument inserts, and RF shielding housings where deviations under 0.025mm directly impact functional performance.

Our engineering team leverages purpose-built small CNC platforms featuring linear motor drives, thermal compensation algorithms, and high-frequency spindles (up to 60,000 RPM) to achieve surface finishes below Ra 0.4μm on materials ranging from aluminum 6061-T6 to PEEK and titanium Grade 5. Crucially, we integrate these machines within a closed-loop digital workflow: CAM programming is validated through virtual machine simulation, while in-process probing ensures first-article conformance to GD&T callouts per ASME Y14.5 standards. This methodology eliminates traditional “test cut” iterations, reducing lead times by 35–50% compared to conventional prototyping approaches. Material waste is minimized through adaptive toolpath strategies that maintain optimal chip load even in challenging geometries, a necessity when machining expensive alloys or composites.

Honyo’s certified technicians operate and maintain these systems under ISO 9001:2015 protocols, with all equipment undergoing bi-weekly volumetric accuracy verification. Below are key specifications representative of our production fleet:

| Parameter | Typical Range | Measurement Standard |

|————————-|————————|———————-|

| Work Envelope (X/Y/Z) | 300 x 200 x 180 mm | ISO 230-2:2015 |

| Positional Accuracy | ±2.5 μm | ISO 230-2:2015 |

| Repeatability | ±1.5 μm | ISO 230-2:2015 |

| Spindle Speed | 24,000–60,000 RPM | ISO 2041:2020 |

| Maximum Tool Capacity | 24 stations | Machine Specification|

This technical foundation allows Honyo to transform complex 3D CAD models into flight-ready or lab-validated components within 72 hours for 95% of prototype orders. Our small CNC cells are not merely scaled-down alternatives but engineered solutions addressing the unique physics of micro-machining—where vibration damping, coolant delivery precision, and thermal stability become exponentially critical at reduced scales. By focusing exclusively on high-mix, low-volume applications, we ensure each machine is configured for optimal performance on parts under 150mm in critical dimensions, delivering the repeatability and surface integrity that turn engineering concepts into functional realities. Partner with Honyo to leverage this precision advantage in your next development cycle.

Technical Capabilities

Shenzhen Honyo Prototype offers precision manufacturing solutions utilizing state-of-the-art small CNC machines engineered for high accuracy, repeatability, and versatility in prototyping and low-volume production. Our technical capabilities span advanced 3-axis, 4-axis, and 5-axis milling processes, as well as CNC turning, enabling us to support complex geometries and stringent tolerance requirements across a broad range of engineering materials.

Our 3-axis CNC milling systems are ideal for prismatic parts and standard cavity machining, delivering high-speed material removal with excellent surface finishes. For components requiring access to multiple faces or rotational features, our 4-axis machines incorporate a rotary indexing table, allowing for precise angular cuts and improved setup efficiency. The most advanced solutions are delivered through our 5-axis simultaneous CNC milling platforms, which provide dynamic toolpath control across X, Y, Z, A, and B axes. This enables the production of highly complex organic shapes, aerospace contours, and intricate mold components without the need for multiple fixturing setups, significantly reducing lead times and enhancing geometric accuracy.

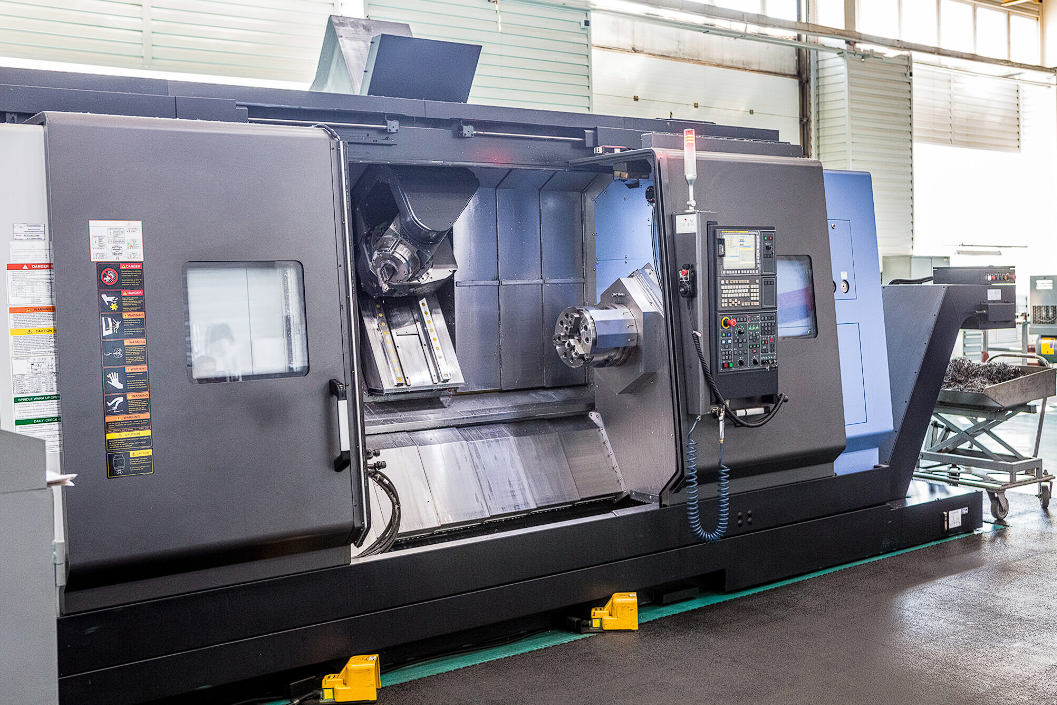

In addition to milling, our CNC turning centers support bar-fed and chucking operations for cylindrical and near-net-shape components. These machines are equipped with live tooling capabilities, allowing for milling, drilling, and tapping operations to be performed during the same cycle—enabling complete part fabrication in a single setup.

Tight tolerance machining is a core competency at Honyo Prototype. Our machines are maintained under strict environmental controls and calibrated regularly to ensure micron-level precision. We consistently achieve tolerances down to ±0.005 mm (±0.0002″) for critical dimensions, with surface finishes as fine as Ra 0.8 µm achievable upon request. Our quality assurance process includes first-article inspection, in-process checks, and final CMM verification to guarantee compliance with engineering specifications.

The table below outlines our standard tolerance capabilities and supported materials across milling and turning operations:

| Feature | Typical Tolerance | Tight Tolerance Capability | Supported Materials |

|——————————-|——————-|—————————-|———————-|

| Linear Dimensions (Milling) | ±0.05 mm | ±0.005 mm | Aluminum (6061, 7075), Stainless Steel (303, 304, 316), Steel (1018, 4140), Titanium (Grade 2, 5), Brass (C36000), Plastics (ABS, POM, PC, PEEK, Nylon) |

| Linear Dimensions (Turning) | ±0.02 mm | ±0.005 mm | Same as above, optimized for bar stock up to Ø40 mm |

| Hole Diameter | ±0.025 mm | ±0.008 mm | Drilled, reamed, and honed options available |

| Positional Accuracy | ±0.02 mm | ±0.005 mm | Verified via CMM and optical measurement |

| Surface Finish (Milling) | Ra 3.2 µm | Ra 0.8 µm (polished) | Machined, bead-blasted, or post-processed |

| Surface Finish (Turning) | Ra 1.6 µm | Ra 0.4 µm | Fine-turning and micro-boring options |

All small CNC machines at Honyo Prototype are integrated with digital tool presetters, probe systems, and high-resolution feedback encoders to maintain dimensional integrity throughout production runs. Our technical team leverages CAM software such as Mastercam and Fusion 360 to optimize toolpaths, minimize cycle times, and ensure superior part quality. Whether for rapid prototyping or bridge manufacturing, our small CNC machining capabilities deliver precision, consistency, and technical excellence.

From CAD to Part: The Process

From CAD to Finished Part: Honyo Prototype’s CNC Production Workflow

At Shenzhen Honyo Prototype, delivering precision small CNC machined parts efficiently requires a rigorously defined workflow. We bridge the gap between your digital design and physical component through three integrated phases: AI-Powered Quoting, Collaborative Design for Manufacturability (DFM), and Optimized Production Execution. This structured approach minimizes iteration, reduces lead times, and ensures first-time-right outcomes for prototype and low-volume production runs on our best-in-class small CNC machines.

The process initiates upon receipt of your 3D CAD model. Our proprietary AI quoting engine performs an immediate geometric and material analysis. This system evaluates feature complexity, required tolerances, stock material utilization, and estimated machine runtime against our specific small CNC capabilities. Crucially, it identifies potential high-risk geometries early, such as deep cavities, thin walls below practical limits, or non-standard hole depths, providing not just a cost estimate but an initial manufacturability flag. This AI layer delivers a preliminary quote within hours, significantly accelerating the initial feedback loop compared to manual review alone.

The core of our value lies in the mandatory DFM review phase, triggered after quote acceptance. Our experienced manufacturing engineers conduct a detailed technical assessment, moving beyond the AI’s initial scan. We focus on optimizing your design for the constraints and opportunities of small CNC machining. This includes verifying tool access for internal features, assessing the feasibility of specified surface finishes on intricate geometries, recommending tolerance adjustments where overly tight specs drive unnecessary cost without functional benefit, and suggesting minor design modifications to eliminate secondary operations. We provide specific, actionable feedback with clear rationale, often including annotated CAD views, fostering collaborative refinement. Material selection is critically evaluated here; while small CNC machines handle common alloys and plastics well, we advise on optimal material grades for machinability and final part performance. Key capabilities of our recommended small CNC platforms are summarized below:

| Parameter | Typical Specification Range | Relevance to Small Parts |

| :—————– | :————————– | :—————————– |

| Work Envelope | 300 x 200 x 200 mm | Dictates maximum part size |

| Positioning Accuracy | ±0.005 mm | Critical for tight-tolerance features |

| Spindle Speed | 24,000 RPM | Enables fine finishes on small tools |

| Min. Tool Diameter | 0.5 mm | Determines smallest feature detail |

| Repeatability | ±0.002 mm | Ensures batch consistency |

Following DFM sign-off, the optimized design enters production. CAM programming is executed using industry-leading software, generating efficient, collision-free toolpaths specifically tuned for our small CNC machines’ dynamics. Rigorous virtual simulation precedes any metal cutting. Setup utilizes precision vices, custom fixtures for complex geometries, and calibrated tooling. During machining, our operators perform in-process inspections on critical dimensions using digital calipers, micrometers, and optical comparators. Final inspection employs Coordinate Measuring Machines (CMM) for full GD&T verification against the approved drawing, with comprehensive reports provided. Post-processing, such as deburring, media blasting, or anodizing, is integrated as specified. This seamless transition from intelligent quoting through collaborative DFM to precision execution ensures your complex small parts are manufactured correctly, efficiently, and ready for integration on schedule.

Start Your Project

Start Your Project with Confidence: Partner with Honyo Prototype for Precision CNC Machining

When it comes to prototyping and low-volume production, selecting the right small CNC machine is only part of the equation. At Shenzhen Honyo Prototype, we understand that precision, speed, and reliability are non-negotiable. Whether you’re developing a new consumer product, engineering a medical device, or iterating on an industrial component, the success of your project hinges on working with a manufacturing partner who combines advanced CNC capabilities with deep technical expertise.

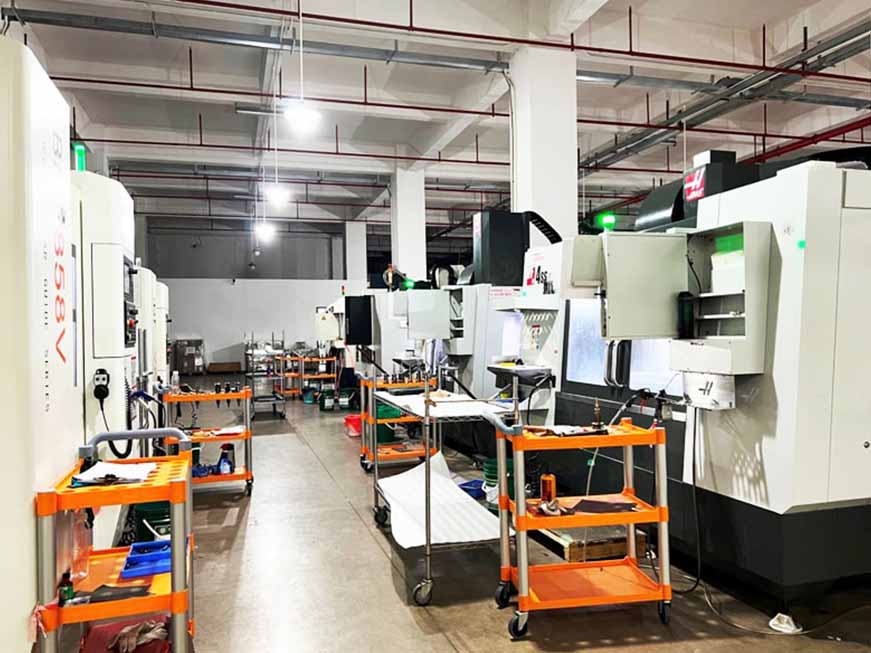

Our facility is equipped with state-of-the-art 3-axis and 5-axis CNC machining centers, specifically optimized for small-part precision. These machines deliver tight tolerances up to ±0.005 mm, ensuring that even the most intricate designs are produced with exceptional accuracy. We specialize in machining a wide range of materials, including aluminum alloys, stainless steel, brass, titanium, and engineering plastics such as PEEK and Delrin—each selected and processed to meet your functional and aesthetic requirements.

For engineers and product developers seeking the best small CNC machine for prototyping, the real advantage lies not just in the machine itself, but in the mastery behind it. Our team applies proven methodologies in toolpath optimization, fixturing, and in-process inspection to minimize cycle times and maximize repeatability. This means faster turnaround, reduced costs, and parts that meet exact design intent—every time.

Below are key capabilities that define our CNC machining services:

| Feature | Specification |

|——–|—————|

| Machine Types | 3-axis, 4-axis, 5-axis CNC milling and turning centers |

| Work Envelope (Max) | 800 x 500 x 400 mm |

| Typical Tolerances | ±0.005 mm |

| Materials Supported | Aluminum (6061, 7075), Stainless Steel (303, 316), Brass, Titanium, PEEK, ABS, PC, Nylon |

| Surface Finishes | As-machined, Bead Blast, Anodizing (Type II & III), Powder Coating, Passivation |

| Lead Time (Standard) | 5–7 business days for most prototypes |

We support projects from concept to delivery with DFM analysis, real-time progress updates, and full traceability. Our clients in aerospace, medical, robotics, and consumer electronics trust us to turn complex designs into high-performance parts with minimal iteration.

Don’t leave your next prototype to chance. Whether you’re evaluating the capabilities of small CNC machines or ready to move forward with production, our engineering team is here to help. Contact Susan Leo, Customer Project Manager at Shenzhen Honyo Prototype, to discuss your project requirements, request a quote, or receive expert advice on material and process selection.

Email: info@hy-proto.com
Let us help you accelerate innovation with precision CNC machining you can rely on.
