Manufacturing Insight: Cnc Plasma Tube Cutting Machine

CNC Plasma Tube Cutting: Precision Fabrication for Structural Frameworks

Shenzhen Honyo Prototype leverages advanced CNC plasma tube cutting technology to deliver high-precision, complex tube and pipe components critical for structural frameworks, machinery, and custom fabrication. This process utilizes a focused, high-velocity plasma arc generated by ionizing gas to melt and eject material, enabling clean, efficient cuts through conductive metals. Unlike traditional sawing or manual torch methods, CNC plasma tube cutting automates the entire operation, integrating multi-axis motion control with sophisticated nesting software. This eliminates time-consuming manual layout, marking, and repositioning, significantly accelerating production while ensuring consistent geometric accuracy across intricate profiles, including miters, notches, and end bevelling for weld preparation. The technology excels in handling the demanding geometries required for modern engineering applications, from simple square tubes to complex curved sections and multi-branch intersections.

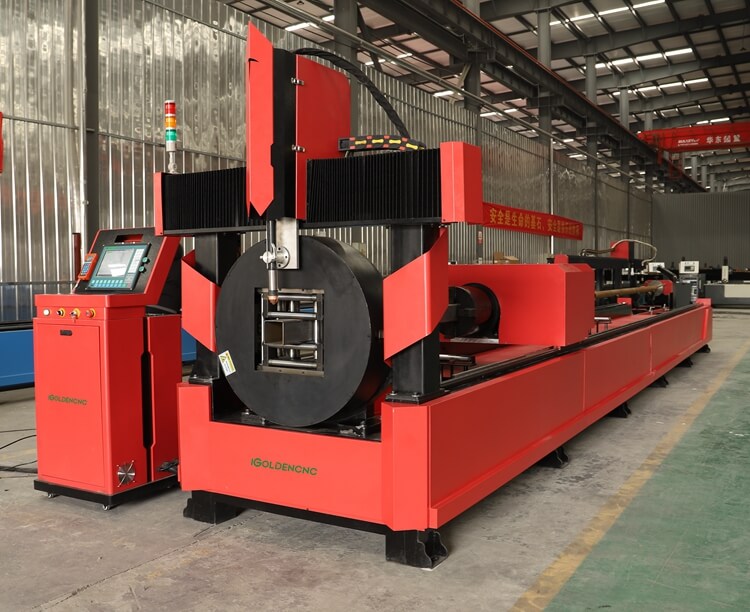

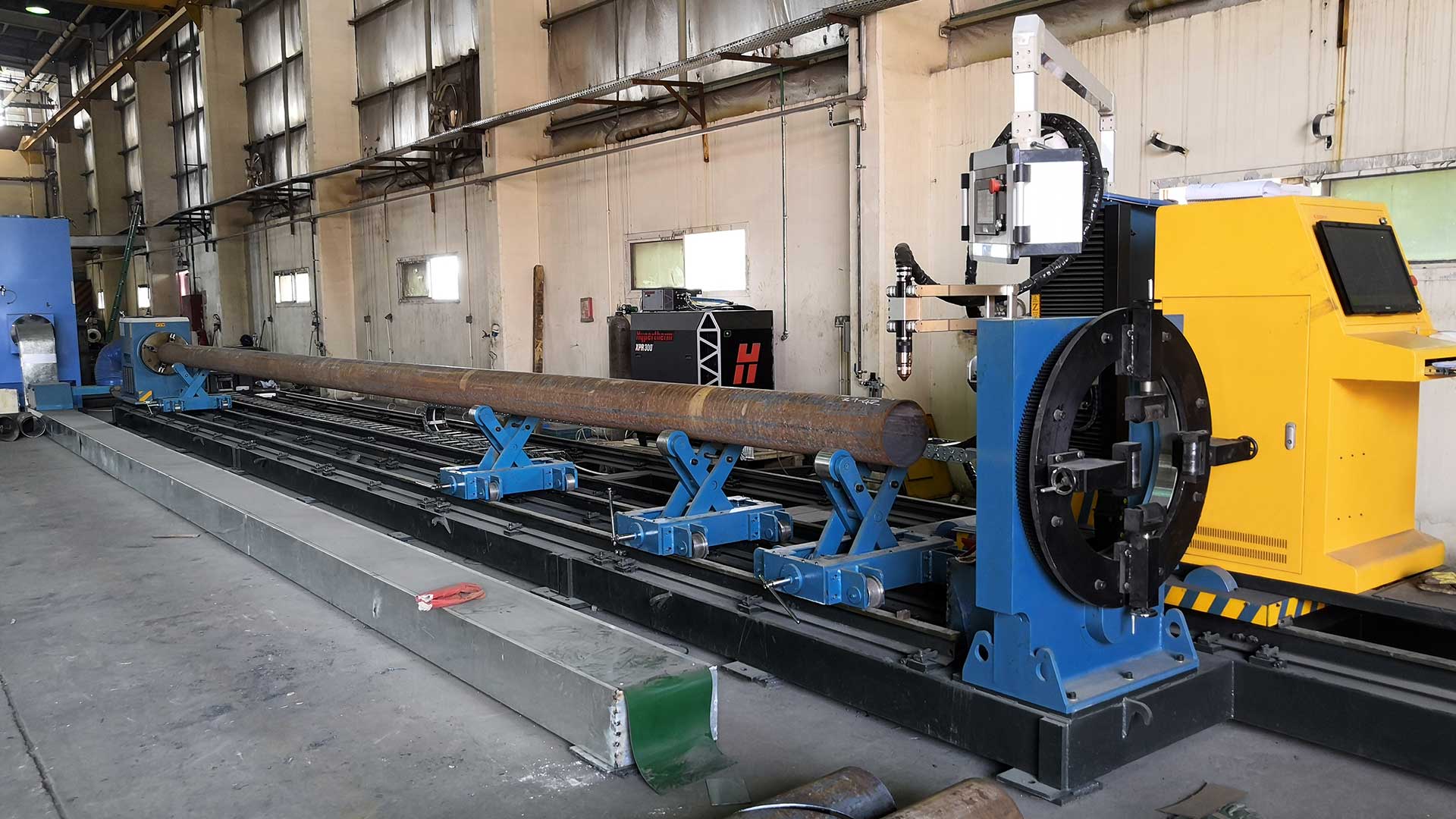

At Honyo, our investment in state-of-the-art CNC plasma tube cutting systems forms a cornerstone of our rapid prototyping and low-to-mid volume production capabilities within the CNC machining portfolio. Our machines feature integrated rotary axes that precisely rotate and position the tube stock relative to the cutting head, enabling full 360-degree contouring. Advanced CAD/CAM integration allows direct translation of 3D part models into machine code, ensuring design intent is faithfully executed. We utilize intelligent nesting algorithms to maximize material utilization from standard tube stock lengths, minimizing waste and cost, particularly valuable for prototype iterations and custom projects. Our process delivers tight tolerances essential for structural integrity and seamless assembly, with cut quality optimized to reduce or eliminate secondary finishing operations. This capability directly addresses common industry challenges: reducing lead times for complex tubular assemblies, improving weld fit-up through precise bevel angles, and enabling economical production of one-off or small-batch custom components that would be prohibitively expensive with traditional tooling.

Honyo’s specific system capabilities ensure robust performance across diverse client requirements. Key technical parameters are summarized below:

| Parameter | Specification | Significance for Clients |

| :——————— | :——————————– | :——————————————- |

| Max Tube Diameter | 300 mm (12 inches) | Accommodates large structural sections |

| Max Wall Thickness | 25 mm (1 inch) in mild steel | Handles substantial industrial components |

| Cutting Accuracy | ±0.2 mm per meter | Ensures precise fit-up for welding/assembly |

| Axes of Motion | 4+ (Linear X,Y,Z + Rotary C/A) | Enables complex 3D contours & bevel cuts |

| Material Compatibility | Mild Steel, Stainless, Aluminum | Supports common engineering alloys |

Our commitment extends beyond the machine. Honyo engineers provide critical design for manufacturability (DFM) feedback early in the process, optimizing part geometry for efficient cutting and minimal distortion. We handle the full workflow from material sourcing and preparation through precision cutting, quality verification using calibrated metrology tools, and final part cleaning. This integrated approach, combining cutting-edge CNC plasma technology with deep manufacturing expertise, allows Shenzhen Honyo Prototype to deliver dimensionally accurate, ready-to-weld tube components faster and with greater reliability than conventional methods, accelerating our clients’ path from design to functional assembly.

Technical Capabilities

CNC Plasma Tube Cutting Machine – Technical Capabilities

Shenzhen Honyo Prototype utilizes advanced CNC plasma tube cutting technology to deliver high-precision fabrication for complex tubular components across aerospace, automotive, and industrial equipment sectors. Our CNC plasma tube cutting machines are engineered for multi-axis precision, enabling seamless execution of intricate geometries on round, square, rectangular, and custom-profiled tubes. These systems integrate 3-axis, 4-axis, and optional 5-axis cutting capabilities, allowing for bevel cuts, miters, notches, and end forms with minimal secondary processing.

The core strength of our CNC plasma tube cutting platform lies in its ability to maintain tight dimensional tolerances while operating at high throughput. Utilizing high-definition plasma sources with dynamic torch height control (THC), the system ensures consistent cut quality across variable material thicknesses and contours. Our machines are equipped with rotary indexing and multi-axis manipulators, enabling full 360° tube rotation and angular cutting up to ±45° on multiple planes, which is essential for complex joint preparations and structural assemblies.

Cut programming is performed using industry-leading CAD/CAM software, allowing direct import of 3D models (IGES, STEP, DXF) and automated toolpath generation. This ensures rapid setup, reduced programming errors, and full repeatability across production runs. Integrated collision detection and nesting optimization further enhance machine uptime and material utilization.

Material compatibility spans a wide range of conductive metals, with optimized parameters for carbon steel, stainless steel, and aluminum alloys. The plasma cutting process delivers excellent edge quality with minimal dross, particularly in the 1 mm to 25 mm wall thickness range. For applications requiring post-weld fit-up precision, our 4-axis and 5-axis configurations support bevel cutting with angles up to 45°, enabling full-penetration welds without manual grinding.

The following table outlines the key technical specifications and achievable tolerances across different material types and thicknesses:

| Parameter | Specification |

|——————————-|————-|

| Cutting Axes | 3, 4, and 5-axis (optional) |

| Tube Diameter Range | Ø10 mm – Ø300 mm |

| Wall Thickness Range | 1 mm – 25 mm |

| Maximum Cutting Length | Up to 6,000 mm |

| Positioning Accuracy | ±0.05 mm/m |

| Repeatability | ±0.1 mm |

| Minimum Feature Size | Ø3 mm hole (in 6 mm steel) |

| Cut Angle Accuracy (Bevel) | ±0.5° |

| Edge Quality (Dross Level) | Class I–II per ISO 9013 |

| Material | Thickness Range | Typical Tolerance (±) | Bevel Capability |

|——————–|—————–|————————|——————|

| Mild Steel | 1–25 mm | 0.2 mm | Yes (up to 45°) |

| Stainless Steel | 1–20 mm | 0.25 mm | Yes |

| Aluminum Alloy | 2–15 mm | 0.3 mm | Yes |

All parts undergo in-process inspection using calibrated measurement tools, with optional CMM validation for critical features. Honyo Prototype’s CNC plasma tube cutting service combines speed, precision, and flexibility to support both prototyping and low-to-mid volume production with consistent quality and tight turnaround times.

From CAD to Part: The Process

From CAD to Completed Part Workflow for CNC Plasma Tube Cutting

The manufacturing workflow for CNC plasma tube cutting at Shenzhen Honyo Prototype follows a structured, three-phase process designed to ensure accuracy, efficiency, and cost-effectiveness from initial inquiry to finished component. This disciplined approach minimizes errors and optimizes production timelines for our clients.

The AI Quote phase initiates the process upon receipt of the client’s CAD file, typically in DXF, DWG, or STEP format. Honyo’s proprietary AI-driven quoting system rapidly analyzes the geometry, material specification, quantity, and required tolerances embedded within the file. It cross-references this data against current material costs, machine utilization rates, and historical production parameters for similar geometries. This generates a highly accurate, instantaneous cost estimate and lead time projection, providing immediate transparency before formal order placement. Key factors influencing the quote include tube diameter range, wall thickness, cut complexity (e.g., miters, notches, holes), material grade (mild steel, stainless, aluminum), and surface finish requirements.

Following order confirmation, the Design for Manufacturability (DFM) validation phase is critical. Honyo’s senior manufacturing engineers conduct a thorough technical review of the CAD model against the capabilities and limitations of our CNC plasma tube cutting systems. This involves verifying minimum bend radii, assessing kerf width implications on tight tolerances, confirming hole diameter feasibility relative to material thickness, optimizing nesting patterns for material yield, and identifying potential thermal distortion risks in complex profiles. Any design elements posing challenges to cut quality, dimensional accuracy, or efficient production are flagged. We collaborate directly with the client to propose actionable refinements, such as slight geometry adjustments or strategic cut sequencing, ensuring the final design is fully optimized for plasma cutting before machine programming begins. This proactive DFM step significantly reduces scrap, rework, and project delays.

The Production Execution phase commences once the CAD model is DFM-approved. Our CAM engineers import the validated file into specialized tube cutting programming software. This software generates the precise machine toolpaths, accounting for plasma torch dynamics, pierce points, lead-ins/lead-outs, and optimal cutting sequences to maintain part stability during processing. The program is rigorously simulated offline to verify collision avoidance and path accuracy. On the shop floor, skilled technicians load the specified raw tube stock, calibrate the machine’s tube clamping system and rotary axis, and perform a final material verification. The CNC plasma system then executes the cut program with high positional accuracy. Post-cut, parts undergo dimensional inspection against the original CAD model using coordinate measuring machines (CMM) or calibrated fixtures, focusing on critical features and overall profile accuracy. Deburring is performed as specified to meet surface quality standards before final packaging and shipment.

This integrated workflow, leveraging AI quoting, rigorous DFM, and precision production, ensures Honyo delivers complex tube components with consistent quality and on-time delivery. The capabilities of our primary CNC plasma tube cutting systems are summarized below.

| Parameter | Specification |

| :——————— | :——————————– |

| Max Tube Diameter | 250 mm (10 inches) |

| Max Material Thickness | 25 mm (1 inch) |

| Positioning Accuracy | ±0.1 mm per meter |

| Plasma Power | 160 – 300 Amp (Hypertherm Powermax) |

| Cut Speed (Typical) | 1000 – 3000 mm/min (material dependent) |

Start Your Project

Start Your Project with Precision CNC Plasma Tube Cutting at Shenzhen Honyo Prototype

When it comes to high-precision fabrication of metal tubes and profiles, Shenzhen Honyo Prototype delivers unmatched expertise through advanced CNC plasma tube cutting technology. Our state-of-the-art machinery ensures clean, accurate, and repeatable cuts for a wide range of industrial applications—from structural frameworks and automotive components to custom architectural features and machinery parts. Whether you’re developing a prototype or preparing for medium-volume production, our capabilities are engineered to meet your specifications with speed, efficiency, and consistency.

At Honyo Prototype, we understand that every project begins with a vision. That’s why our team is committed to turning your design concepts into tangible, high-quality components using optimized manufacturing processes. Our CNC plasma tube cutting machines are equipped with 3D programming and multi-axis cutting heads, enabling complex geometries such as miters, notches, holes, and bevels—all in a single setup. This reduces lead times, minimizes human error, and ensures dimensional accuracy down to ±0.2 mm.

We support a broad range of materials, including carbon steel, stainless steel, aluminum, and other conductive metals, with tube diameters and lengths tailored to your project needs. Our automated loading and alignment systems enhance throughput and consistency, particularly for batch production runs. Additionally, our pre-processing software allows for seamless integration of DXF, STEP, and IGS file formats, ensuring compatibility with your CAD models and reducing time-to-manufacture.

To ensure maximum efficiency and part quality, we apply real-time plasma monitoring and adaptive control systems that adjust cutting parameters based on material thickness and surface conditions. This results in smooth edge finishes, minimal dross, and reduced post-processing requirements—delivering parts that are ready for welding, assembly, or surface treatment straight off the machine.

The following table outlines the key technical specifications of our CNC plasma tube cutting system:

| Parameter | Specification |

|——————————-|———————————————-|

| Maximum Tube Diameter | 250 mm |

| Maximum Tube Length | 6,000 mm |

| Material Thickness Range | 1–25 mm |

| Cutting Accuracy | ±0.2 mm |

| Supported Materials | Carbon steel, stainless steel, aluminum |

| Axis Configuration | 4-axis (rotary + XYZ) |

| Supported File Formats | DXF, STEP, IGS, DWG |

| Plasma Source | High-definition CNC-controlled plasma |

| Lead Time (Typical) | 3–7 days (depending on complexity and volume) |

Starting your project with Honyo Prototype is simple. Share your design files and technical requirements with us, and our engineering team will provide a detailed manufacturability analysis, competitive quotation, and timeline estimate—all within 24 hours of submission.

For immediate assistance, contact Susan Leo at info@hy-proto.com. Let us help you bring precision, reliability, and speed to your next fabrication project.
