Manufacturing Insight: Cutting Stainless Steel Sheets

Manufacturing Insight: Precision Cutting of Stainless Steel Sheets

Stainless steel sheet fabrication demands specialized cutting methodologies to overcome inherent material challenges including work hardening, thermal conductivity variations, and the critical requirement for corrosion-resistant edges. At Shenzhen Honyo Prototype, we leverage advanced CNC-controlled technologies to deliver precise, burr-minimized cuts essential for high-integrity applications across aerospace, medical, and industrial sectors. Selecting the optimal cutting process is paramount, balancing factors such as material grade (primarily 304 and 316), sheet thickness, required dimensional accuracy, edge quality, and production volume. Incorrect methodology can induce heat-affected zones (HAZ), compromising corrosion resistance, or cause excessive burr formation requiring costly secondary operations.

Our facility integrates three core cutting technologies, each optimized for specific stainless steel fabrication scenarios. Fiber laser cutting represents our primary solution for sheets up to 25mm, offering exceptional speed, precision, and minimal thermal distortion on thinner gauges. For thicker sections exceeding 25mm or applications demanding zero thermal impact, abrasive waterjet cutting provides a cold-cutting alternative, though at reduced throughput. Plasma cutting serves high-volume requirements for thicker structural components where edge finish is secondary to speed, though it generally incurs a larger HAZ and requires post-processing for critical applications. The following table details key process capabilities for stainless steel:

| Process | Max Thickness (304/316 SS) | Typical Tolerance | Edge Quality Characteristic | Best Suited For Applications Requiring |

| :————— | :———————— | :—————- | :————————– | :————————————- |

| Fiber Laser | 25 mm | ±0.1 mm | Smooth, minimal HAZ/burr | Precision enclosures, medical parts, thin structural components |

| Abrasive Waterjet | 150 mm | ±0.2 mm | No HAZ, slight striations | Thick plates, heat-sensitive alloys, intricate contours |

| Plasma | 50 mm | ±0.5 mm | Moderate HAZ, requires deburring | Non-critical structural parts, high-volume rough cutting |

Honyo Prototype maintains stringent process control for all stainless steel cutting operations. Our fiber laser systems utilize high-pressure nitrogen assist gas for oxide-free, weld-ready edges on material up to 20mm, achieving tolerances consistently within ±0.1 mm. For waterjet cutting, we employ calibrated garnet abrasives and optimized pump pressures to ensure straightness and minimize taper on thick sections. All equipment undergoes daily calibration checks per ISO 9001 protocols, with in-process inspections verifying dimensional compliance against client CAD data. Material handling protocols prevent surface contamination, preserving the passive layer critical for corrosion performance. Our engineers proactively advise on design for manufacturability (DFM), suggesting kerf compensation and feature spacing adjustments to mitigate stainless steel’s tendency toward work hardening during cutting.

Partnering with Honyo Prototype guarantees access to not only state-of-the-art cutting equipment but also deep metallurgical expertise applied to stainless steel fabrication challenges. We transform complex sheet metal designs into high-precision components with the structural integrity and surface quality demanded by critical applications, delivered with responsive prototyping and low-volume production agility.

Technical Capabilities

Shenzhen Honyo Prototype delivers precision sheet metal fabrication services tailored for industrial, medical, and high-tech applications. Our technical capabilities in processing stainless steel sheets are built on advanced laser cutting, precision bending, and high-integrity welding technologies. These processes ensure consistent quality, tight tolerances, and repeatability for both prototyping and low-to-mid volume production runs.

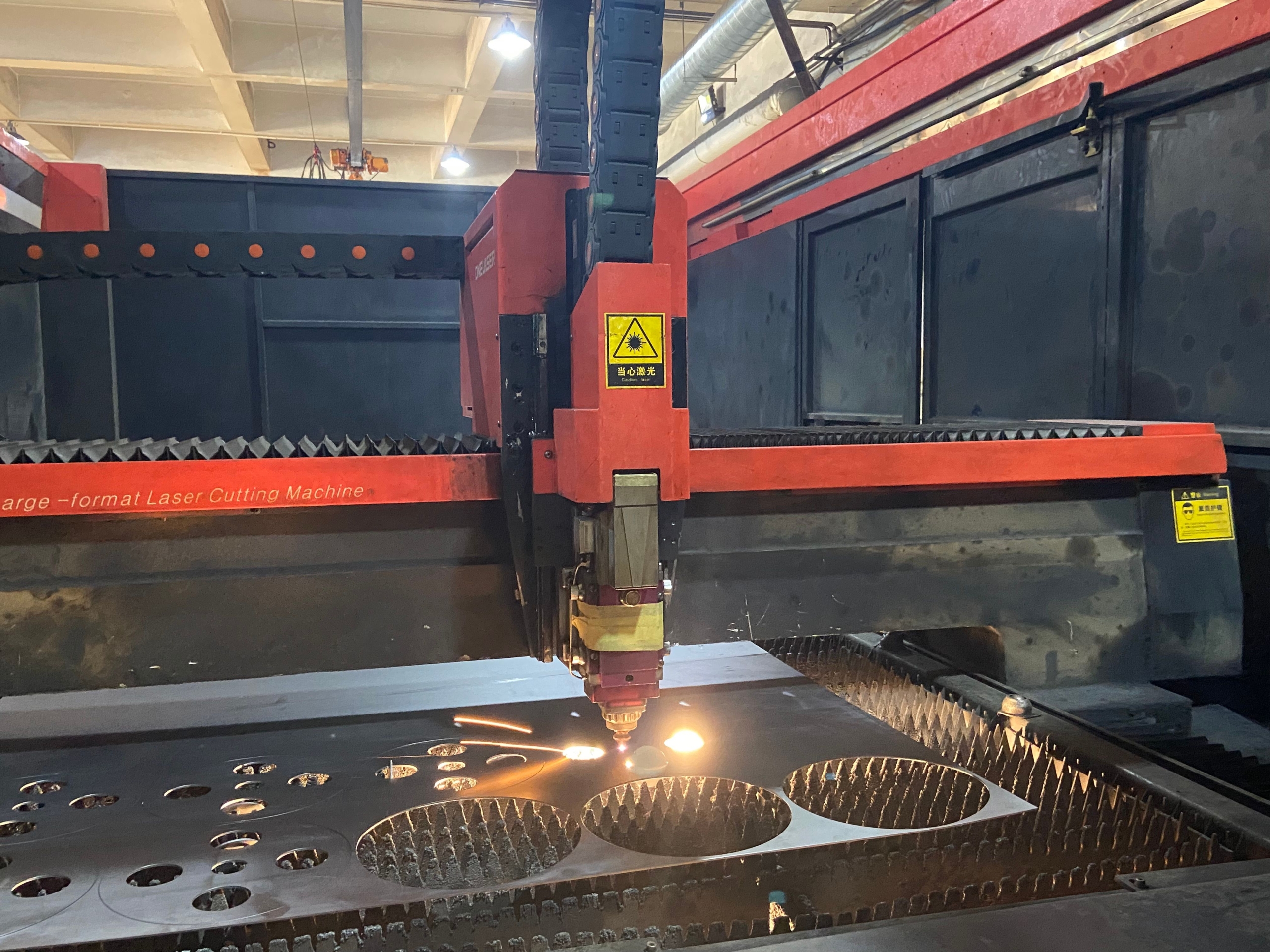

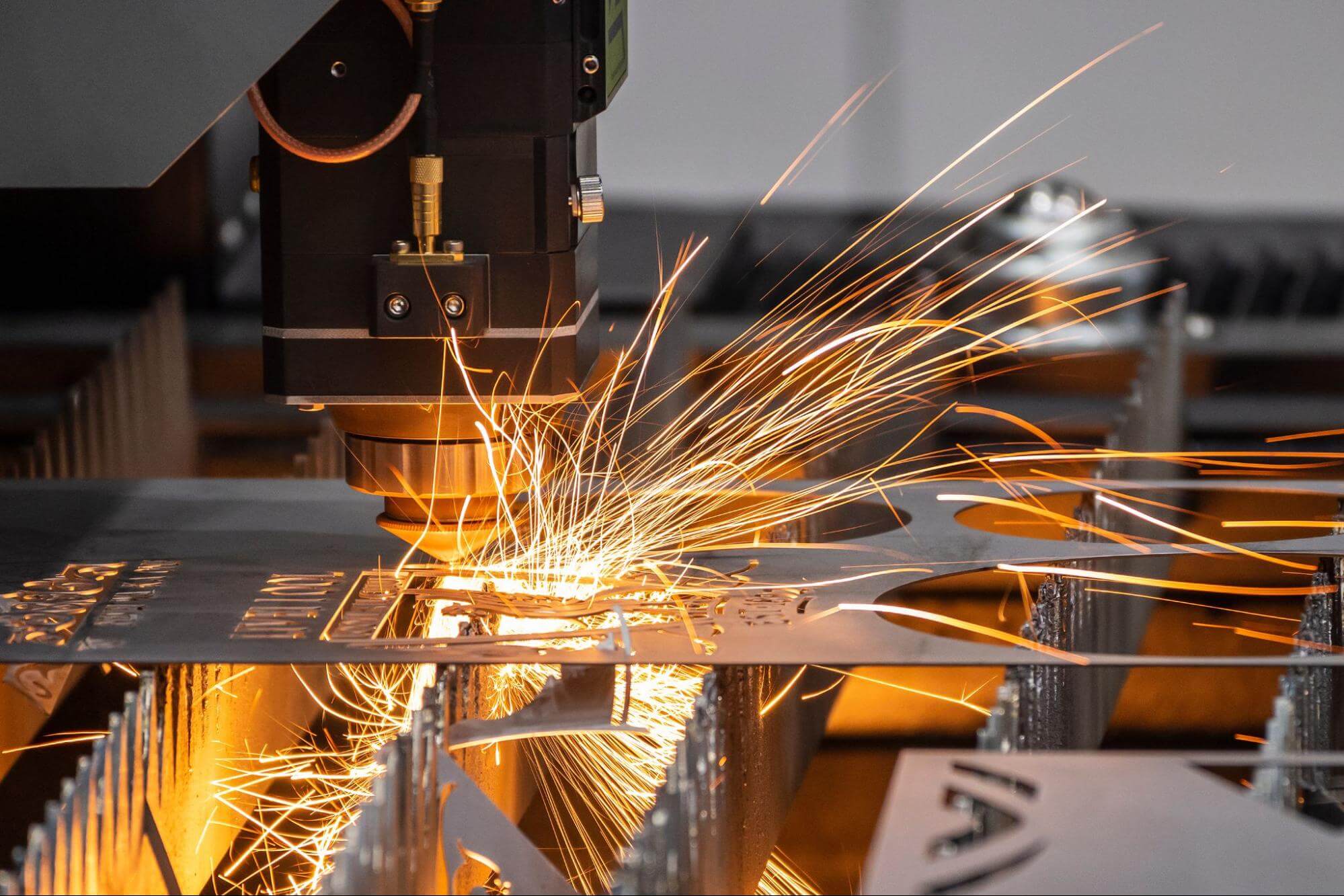

Laser cutting is our primary method for shaping stainless steel sheets, utilizing high-powered fiber laser systems capable of clean, high-speed cuts with minimal heat-affected zones. We process common grades including 304, 304L, 316, and 316L stainless steel, with thickness ranging from 0.5 mm to 6.0 mm. The laser cutting process supports intricate geometries, fine features, and high edge quality, making it ideal for components requiring tight dimensional control and smooth surface finishes. All cuts are optimized for minimal burr formation, and secondary deburring is available upon request.

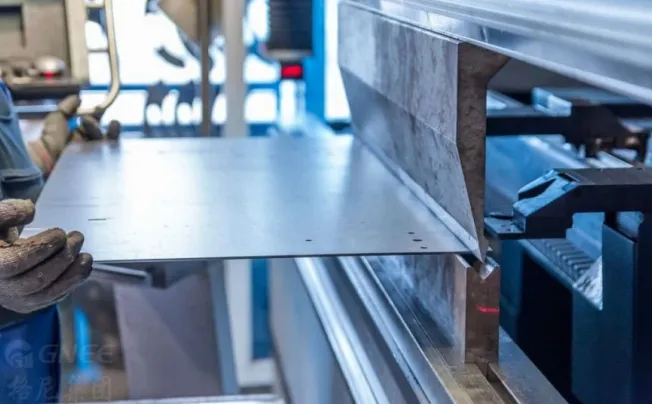

Bending operations are performed using CNC press brakes equipped with precision-ground tools and backgauges, ensuring angular accuracy and consistency across batches. We support bend radii as tight as 0.8 mm, depending on material thickness and grade, with typical bend angles held to ±0.5°. Our bending capabilities accommodate complex sheet geometries, including multi-stage bends and flanges with tight spacing. Tooling selection is optimized to prevent marking on the stainless surface, particularly important for cosmetic or sanitary applications.

Welding is conducted using TIG (GTAW) and pulsed MIG processes, chosen for their control, low spatter, and excellent weld bead aesthetics. All welding is performed by certified technicians in accordance with ISO 3834 standards. We routinely perform full- and spot-welding on stainless steel assemblies, with post-weld treatments including pickling, passivation, and polishing to restore corrosion resistance and surface finish. Weldment fit-up is ensured through precision-cut and formed components, minimizing distortion and rework.

The following table outlines key technical specifications for stainless steel sheet fabrication:

| Process | Material Grades | Thickness Range (mm) | Tolerance (Linear) | Angular Tolerance | Notes |

|——————|————————|————————|———————|——————–|——-|

| Laser Cutting | 304, 304L, 316, 316L | 0.5 – 6.0 | ±0.1 mm | — | Burr < 0.1 mm typical; edge squareness ±1° |

| CNC Bending | 304, 304L, 316, 316L | 0.8 – 6.0 | ±0.2 mm | ±0.5° | Minimum bend radius 0.8t; tool marking minimized |

| TIG Welding | 304, 304L, 316, 316L | 0.8 – 6.0 | ±0.3 mm (assembled) | — | Full or spot welds; post-weld passivation available |

All fabricated components undergo in-process and final inspection using calibrated measurement tools, including CMM, optical comparators, and surface roughness testers. Shenzhen Honyo Prototype maintains full traceability of materials and process parameters, ensuring compliance with customer engineering requirements and international quality standards.

From CAD to Part: The Process

Stainless Steel Sheet Cutting: From CAD to Finished Part Workflow

At Shenzhen Honyo Prototype, our sheet metal fabrication process for stainless steel integrates precision engineering with advanced manufacturing to ensure optimal part quality and efficiency. The workflow begins with an AI-driven quotation system, transitions through rigorous Design for Manufacturability (DFM) analysis, and culminates in controlled production. This structured approach minimizes errors, reduces lead times, and maximizes material utilization for stainless steel grades including 304, 316, and 430.

The process initiates when a client submits a CAD file via our online portal. Our AI quotation engine instantly evaluates geometric complexity, material thickness, and quantity to generate a preliminary cost and timeline estimate. This system cross-references historical production data for stainless steel, accounting for factors like work hardening susceptibility and thermal distortion risks. Within minutes, the client receives a transparent quote, enabling rapid project validation.

Upon order confirmation, the CAD model enters our DFM phase. Our engineering team conducts a comprehensive review focused on stainless steel-specific challenges. Key considerations include verifying bend radii against material thickness to prevent cracking, assessing hole diameters relative to sheet gauge, and optimizing nest layout to minimize kerf loss. Critical DFM checks also address heat-affected zone (HAZ) control and burr management, which are paramount for corrosion-resistant applications. Engineers collaborate with the client to resolve conflicts, such as adjusting tolerances per ISO 2768-m or recommending alternative cut paths to avoid micro-fissures in high-carbon grades.

Production commences only after DFM sign-off. Stainless steel sheets are staged in climate-controlled storage to prevent moisture-induced oxidation. Cutting methods are selected based on thickness and precision requirements, as detailed below:

| Cutting Method | Max Thickness (mm) | Power (kW) | Edge Quality (Ra µm) | Primary Use Case |

|—————-|———————|————|———————-|—————————|

| Fiber Laser | 25 | 1–6 | 3.2–6.3 | Precision parts <15mm |

| Plasma | 50 | 60–200 | 12.5–25 | Structural components >6mm |

Laser cutting employs nitrogen assist gas to prevent oxide layer formation on cut edges, critical for welded or polished components. Plasma cutting utilizes oxygen for thicker sections where edge smoothness is secondary. All systems undergo daily calibration checks to maintain ±0.1mm positional accuracy. Post-cut, parts undergo deburring and dimensional verification against the original CAD model using CMM inspection. Final packaging includes anti-corrosion VCI paper to preserve surface integrity during transit.

This integrated workflow—from AI quoting through DFM validation to controlled production—ensures stainless steel components meet stringent aerospace, medical, and industrial standards. By addressing material-specific behaviors at each phase, Honyo Prototype delivers parts with consistent edge quality, dimensional stability, and corrosion resistance, reducing client rework by up to 35% compared to conventional processes.

Start Your Project

Start Your Project with Precision Stainless Steel Cutting at Shenzhen Honyo Prototype

When it comes to sheet metal fabrication, precision, reliability, and material integrity are non-negotiable—especially when working with stainless steel. At Shenzhen Honyo Prototype, we specialize in high-accuracy cutting of stainless steel sheets tailored to your exact design specifications. Whether your project involves intricate contours, tight tolerances, or large-scale production runs, our advanced manufacturing capabilities ensure consistent quality and fast turnaround.

Stainless steel is a preferred material across industries due to its corrosion resistance, strength, and aesthetic finish. However, its hardness and work-hardening characteristics demand specialized cutting techniques. Our facility employs state-of-the-art CNC-controlled fiber laser cutting, waterjet cutting, and high-precision shearing systems to deliver clean, burr-free edges without compromising the metallurgical properties of the material. Each method is selected based on your project’s thickness, geometry, and surface quality requirements.

We support a wide range of stainless steel grades, including 304, 304L, 316, 316L, and 430, in thicknesses from 0.5 mm to 25 mm. Our in-house engineering team collaborates with clients to optimize designs for manufacturability, minimizing waste and reducing lead times without sacrificing performance.

Below are the key technical specifications for our stainless steel sheet cutting services:

| Parameter | Fiber Laser Cutting | Waterjet Cutting | Shearing |

|————————-|—————————|—————————-|—————————|

| Material Thickness Range| 0.5 – 20 mm | 0.5 – 25 mm | 0.5 – 12 mm |

| Tolerance | ±0.1 mm | ±0.2 mm | ±0.1 mm |

| Edge Quality | Smooth, minimal dross | No heat-affected zone | Straight, clean cut |

| Max Sheet Size | 1500 x 3000 mm | 2000 x 4000 mm | 1500 x 3000 mm |

| Lead Time (Standard) | 3–5 working days | 4–6 working days | 2–4 working days |

| Suitable Grades | 304, 304L, 316, 316L, 430 | All stainless grades | 304, 304L, 316, 316L |

All cutting processes are supported by comprehensive quality control, including dimensional inspection and surface finish verification, ensuring that every part meets industry standards and client expectations.

Starting your project with Honyo Prototype is simple. Share your CAD files, technical drawings, or project requirements, and our team will provide a detailed quotation, material recommendations, and design feedback within 24 hours.

For immediate assistance, contact Susan Leo at info@hy-proto.com. With over a decade of experience in precision sheet metal manufacturing, Susan serves as your dedicated project liaison, guiding you from concept to final production. We support low-volume prototypes, mid-range batches, and high-volume fabrication with equal commitment to quality and service.

Don’t let complex stainless steel cutting challenges delay your development timeline. Partner with Shenzhen Honyo Prototype—where advanced technology meets engineering excellence. Reach out today and take the first step toward manufacturing success.
