Manufacturing Insight: Investment Casting Stainless Steel
Manufacturing Insight: Investment Casting for Stainless Steel Components

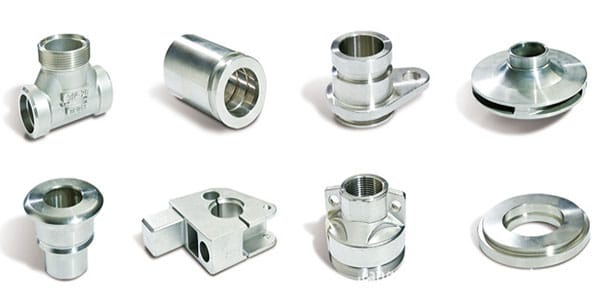

Investment casting, also known as lost-wax casting, delivers exceptional precision and surface finish for complex stainless steel components where traditional machining or fabrication proves impractical or cost-prohibitive. While Shenzhen Honyo Prototype specializes in CNC machining, we integrate investment casting as a strategic complementary process for customers requiring near-net-shape stainless steel parts with intricate geometries, thin walls, or organic forms. This synergy allows us to offer comprehensive solutions: investment casting creates the foundational shape efficiently, while our CNC capabilities handle critical secondary features, tight tolerances, and finishing. For industries like medical instrumentation, aerospace fluid systems, and high-end fluid handling, this combined approach optimizes performance, material utilization, and total cost of ownership.
Honyo leverages over 15 years of specialized experience in casting stainless steel alloys, ensuring metallurgical integrity and dimensional reliability. Our process utilizes high-fidelity wax patterns, advanced ceramic shell systems, and controlled vacuum or air-melt induction furnaces to minimize inclusions and porosity. We excel with demanding grades including 304/L, 316/L, 17-4 PH, and 440C, catering to applications requiring corrosion resistance, high strength, or biocompatibility. Critical to our success is rigorous process control from pattern injection through shell building, dewaxing, casting, and heat treatment, ensuring consistent mechanical properties and compliance with ASTM A743/A351 standards.
Our technical capabilities for stainless steel investment casting are structured to support rapid prototyping and low-to-mid volume production efficiently. The table below summarizes key parameters:
| Parameter | Capability Range | Notes |
|————————-|————————————–|—————————————-|
| Common Alloys | 304/L, 316/L, 17-4 PH, 440C, CF8M | ASTM/AMS specifications met |
| Weight Range | 5g – 25kg (100g typical prototype) | Optimized for small/medium components |
| Dimensional Tolerance | ±0.1% of dimension (min ±0.05mm) | Secondary CNC features tighter (±0.01mm) |
| Surface Finish (As-Cast)| 1.6 – 3.2 μm Ra (63 – 125 μin) | Machining or polishing available |
| Lead Time (Prototype) | 15 – 25 working days | Includes pattern tooling & casting |
Honyo’s value proposition lies in our integrated manufacturing ecosystem. We manage the entire casting workflow in-house – from initial design review and rapid wax pattern production to casting, non-destructive testing (including MPI/UT), and precision CNC finishing. This vertical integration eliminates supply chain friction, accelerates iteration for design validation, and guarantees seamless transition from prototype to pilot production. Our engineering team collaborates closely with clients during the design phase to optimize part geometry for castability, minimizing cost drivers like excessive machining stock or complex core requirements. For stainless steel components demanding complexity, material efficiency, and superior surface quality, Honyo’s investment casting service, augmented by our core CNC expertise, provides a technically robust and commercially viable pathway from concept to certified component.
Technical Capabilities

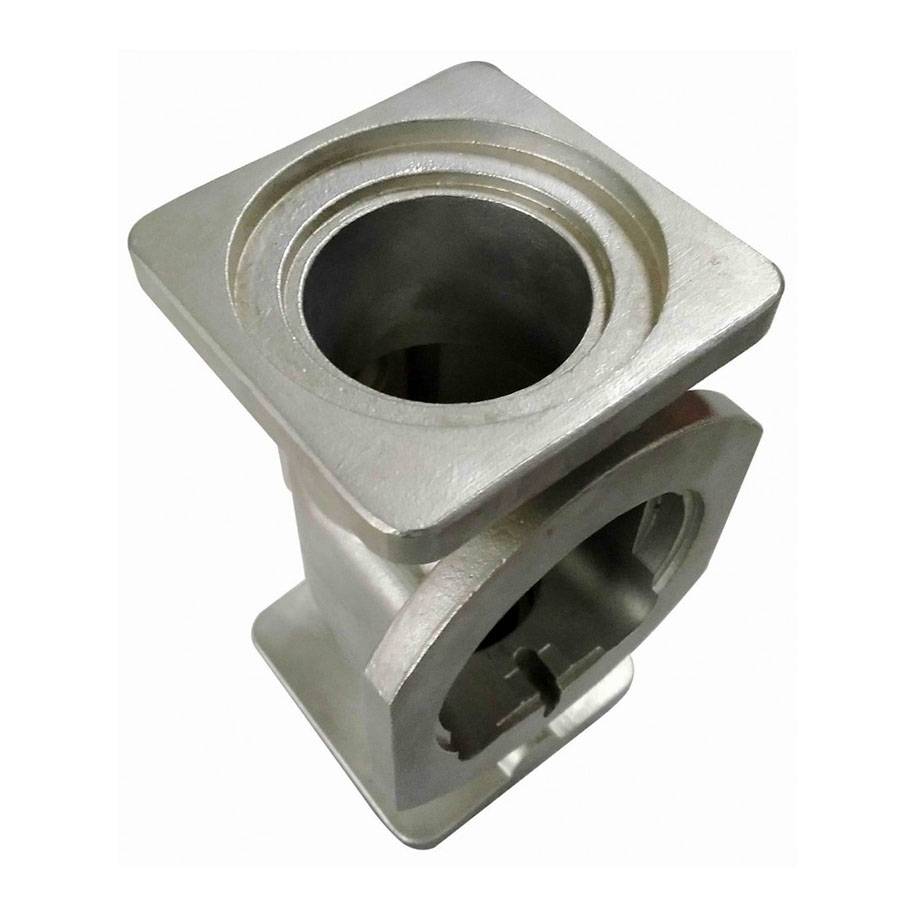

Investment Casting Stainless Steel – Technical Capabilities
Shenzhen Honyo Prototype specializes in high-precision manufacturing solutions, combining investment casting with advanced CNC machining to deliver complex, high-integrity stainless steel components. Our integrated process ensures superior dimensional accuracy, excellent surface finish, and consistent mechanical properties—ideal for aerospace, medical, and industrial applications where performance and reliability are paramount.

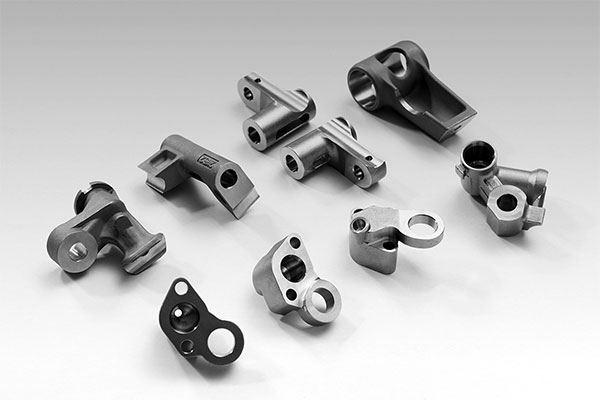

Our investment casting process begins with wax pattern creation, followed by ceramic shell molding and precision burnout. This enables the production of intricate geometries with minimal draft and undercuts that are difficult to achieve through conventional casting or machining alone. Once cast, stainless steel components undergo precision CNC machining using 3, 4, and 5-axis milling centers and multi-axis turning systems to achieve tight tolerances and critical feature alignment.
We specialize in machining investment-cast stainless steel parts with tight tolerance control across multi-axis platforms. Our 3-axis milling systems provide high-speed contouring and pocketing for planar and prismatic features. 4-axis machining adds rotational capability (A-axis), enabling complex angular features and reduced setup次数. 5-axis simultaneous machining allows for the most complex organic shapes, deep cavities, and compound angles—delivering accuracy and surface consistency in a single setup.
Turning operations are performed on CNC lathes with live tooling, supporting secondary milling, drilling, and tapping operations on cast stainless steel components. This hybrid approach ensures high concentricity and precise diameter control, especially for shafts, flanges, and cylindrical housings derived from investment castings.
Tight tolerance machining is a core competency. Our process control systems, in-process probing, and thermal compensation algorithms maintain tolerances as tight as ±0.005 mm on critical dimensions. Surface finishes down to Ra 0.8 µm are routinely achieved, with polishing options available for medical-grade requirements.
We primarily work with the following stainless steel grades in investment casting:
| Material Grade | Common Name | Key Properties | Typical Applications |
|—————-|————-|—————-|————————|
| SS 304 / 304L | Austenitic Stainless Steel | Excellent corrosion resistance, good formability, non-magnetic | Food processing, chemical, general industrial |
| SS 316 / 316L | Marine-Grade Stainless Steel | Superior chloride resistance, high toughness | Marine, medical, pharmaceutical |
| 17-4 PH | Precipitation Hardening Stainless | High strength, good corrosion resistance, heat-treatable | Aerospace, defense, high-stress components |
| 440C | Martensitic Stainless Steel | High hardness, wear resistance | Bearings, valves, cutting tools |
Dimensional accuracy is maintained through strict adherence to GD&T standards and comprehensive CMM inspection. The table below outlines our standard and tight tolerance capabilities for machined investment-cast stainless steel parts:
| Feature Type | Standard Tolerance | Tight Tolerance | Notes |
|———————-|——————–|—————–|——-|
| Linear Dimensions | ±0.05 mm | ±0.005 mm | Up to 150 mm |
| Hole Diameter | ±0.025 mm | ±0.01 mm | Reamed/ground |
| Positional Tolerance | ±0.05 mm | ±0.01 mm | Per GD&T |
| Surface Finish (Ra) | 3.2 µm | 0.8 µm | Machined; polished to 0.2 µm available |
| Angular Features | ±0.1° | ±0.05° | 4/5-axis controlled |
At Shenzhen Honyo Prototype, we combine investment casting’s design flexibility with CNC machining’s precision to deliver stainless steel components that meet the most demanding technical specifications.
From CAD to Part: The Process
Investment Casting Stainless Steel: Production Process Workflow
At Shenzhen Honyo Prototype, our investment casting process for stainless steel components integrates digital efficiency with precision manufacturing. This workflow transforms CAD models into finished parts through three tightly coupled phases: AI-Powered Quoting, Design for Manufacturability (DFM) analysis, and production execution. The result is accelerated prototyping with minimized rework, specifically optimized for low-volume stainless steel applications like aerospace brackets, medical instruments, and fluid system components.
The process initiates with an AI-Powered Quote Request. Customers upload 3D CAD files (STEP/IGES) to our portal, triggering instant analysis of geometric complexity, material requirements (primarily 316L or 17-4PH stainless steel), and dimensional tolerances. Our AI engine cross-references historical production data to estimate material yield, labor hours, and secondary operations, generating a detailed cost breakdown within 2 hours. Crucially, the system flags preliminary concerns such as wall thickness variations below 2.5mm or non-optimized parting lines, setting the stage for proactive DFM collaboration.
DFM Analysis follows immediately, conducted by our engineering team using specialized simulation tools. This phase focuses on eliminating casting defects while maintaining CNC-machinable features for secondary operations. We evaluate gate placement, shrinkage compensation, and support structure requirements, ensuring the as-cast part meets critical tolerances before final machining. Common refinements include adjusting fillet radii to prevent hot tears or repositioning features to avoid costly post-cast milling. Material-specific constraints are paramount, as shown below:
| Parameter | 316L Stainless Steel | 17-4PH Stainless Steel |
|——————–|———————-|————————|
| Minimum Wall Thickness | 2.0 mm | 1.8 mm |
| As-Cast Tolerance (per 100mm) | ±0.30 mm | ±0.25 mm |
| Critical CNC Finish Areas | Corrosion-prone surfaces | High-strength interfaces |

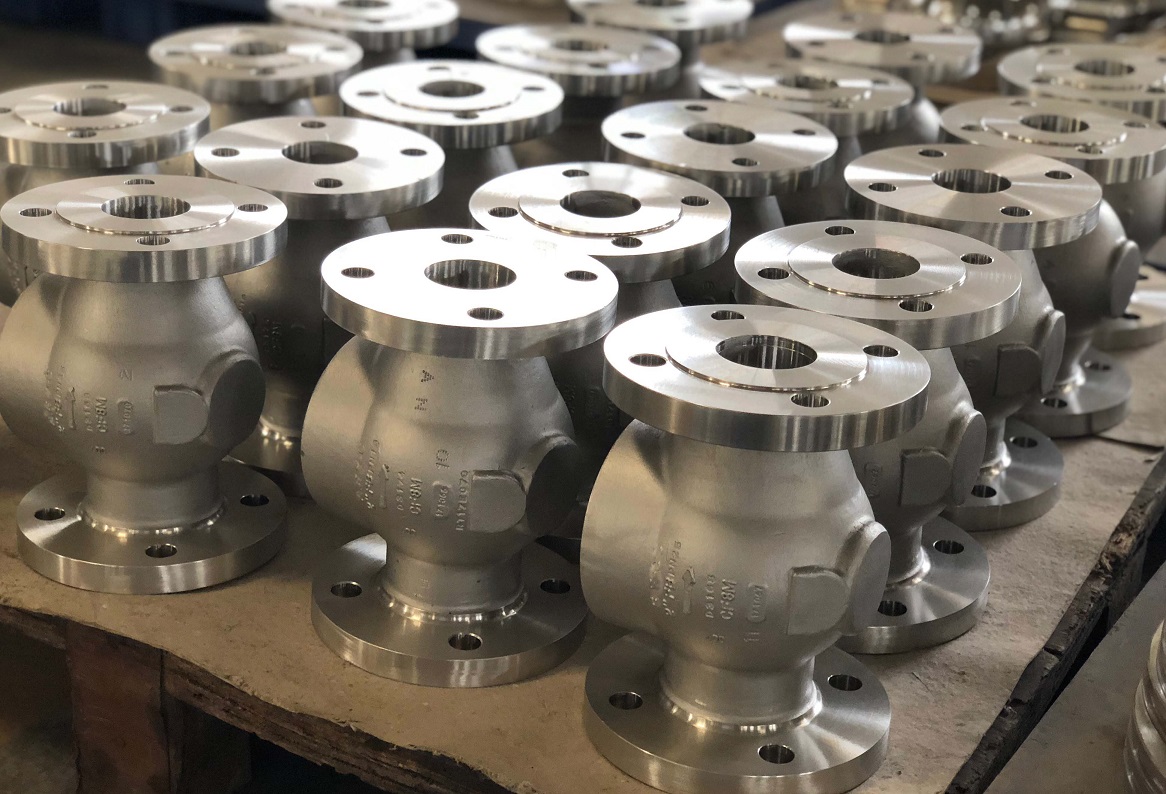

Upon DFM approval, Production Execution commences. First, a high-resolution wax pattern is 3D printed or injection-molded from the verified CAD data. This pattern undergoes ceramic shell buildup via slurry dipping and stucco coating, forming a refractory mold after dewaxing and sintering. Molten stainless steel is then precision-poured into the mold under vacuum to minimize porosity. Post-casting, parts undergo controlled cooling, gate removal via band sawing, and vibratory finishing. Finally, CNC machining (our core competency) achieves tight-tolerance features—such as threaded inserts or sealing surfaces—to ±0.05 mm accuracy, with optional passivation or electropolishing for medical-grade finishes.
This integrated workflow reduces lead times by 30% compared to traditional casting vendors. By anchoring the process in AI-driven quoting and rigorous DFM, Honyo ensures stainless steel castings meet structural and surface requirements on the first iteration. Our closed-loop system—from digital model to CNC-finished part—delivers prototype-ready components in 12–18 days, with full traceability from material certs to final inspection reports. For complex geometries, we recommend initiating with our DFM consultation to maximize yield and minimize secondary operation costs.
Start Your Project
Start Your Investment Casting Project with Precision and Confidence
When it comes to manufacturing high-integrity stainless steel components, investment casting offers unmatched precision, surface finish, and geometric flexibility. At Shenzhen Honyo Prototype, we specialize in delivering fully optimized investment casting solutions tailored to your exact specifications. Whether you’re developing aerospace components, medical devices, or industrial equipment, our advanced manufacturing capabilities ensure your parts meet the highest standards of performance and reliability.
Our CNC-integrated investment casting process combines traditional lost-wax techniques with modern machining precision. This hybrid approach enables us to produce complex stainless steel geometries that are difficult or impossible to achieve through conventional casting or machining alone. From initial design consultation to final inspection, we maintain strict process control to ensure dimensional accuracy, material integrity, and repeatability across both prototypes and production runs.
We work with a range of stainless steel alloys, including 304, 316, 17-4PH, and 440C, selected based on your application’s requirements for corrosion resistance, strength, and thermal stability. Each casting is produced using high-purity waxes, ceramic shell systems, and controlled furnace operations to minimize defects and ensure consistent microstructure. Post-casting CNC machining further enhances precision, allowing us to meet tight tolerances down to ±0.05 mm.
At Honyo Prototype, we understand that every project begins with a conversation. Our engineering team collaborates closely with clients during the design phase to optimize part geometry for castability, reduce material waste, and minimize secondary operations. We provide detailed manufacturability feedback, including wall thickness analysis, gate placement recommendations, and draft angle adjustments—helping you avoid costly redesigns and delays.
To ensure transparency and quality, we offer comprehensive in-house inspection services, including CMM measurement, metallurgical testing, and non-destructive evaluation (NDE). Our ISO-compliant quality management system guarantees that every component meets international standards for performance and safety.
If you’re ready to move forward with your stainless steel investment casting project, now is the time to connect with an expert. Contact Susan Leo, our dedicated project coordinator, to discuss your requirements, request a quote, or receive technical support. With fast response times and a customer-first approach, we make it easy to turn your design into a high-performance reality.
| Material | Common Grades | Tensile Strength (MPa) | Corrosion Resistance | Typical Applications |
|——————|——————-|————————|————————|——————————-|
| Austenitic SS | 304, 316 | 515–620 | Excellent | Medical, Food Processing |
| Martensitic SS | 440C, 410 | 760–1800 | Moderate | Valves, Cutting Tools |
| Precipitation Hardening | 17-4PH | 1000–1300 | Good | Aerospace, Oil & Gas |
Let Honyo Prototype be your trusted partner in precision manufacturing. Reach out today and take the first step toward flawless component production.
Contact Susan Leo at info@hy-proto.com to start your project.
