Manufacturing Insight: Cast Iron Steel

Manufacturing Insight: Cast Iron Machining

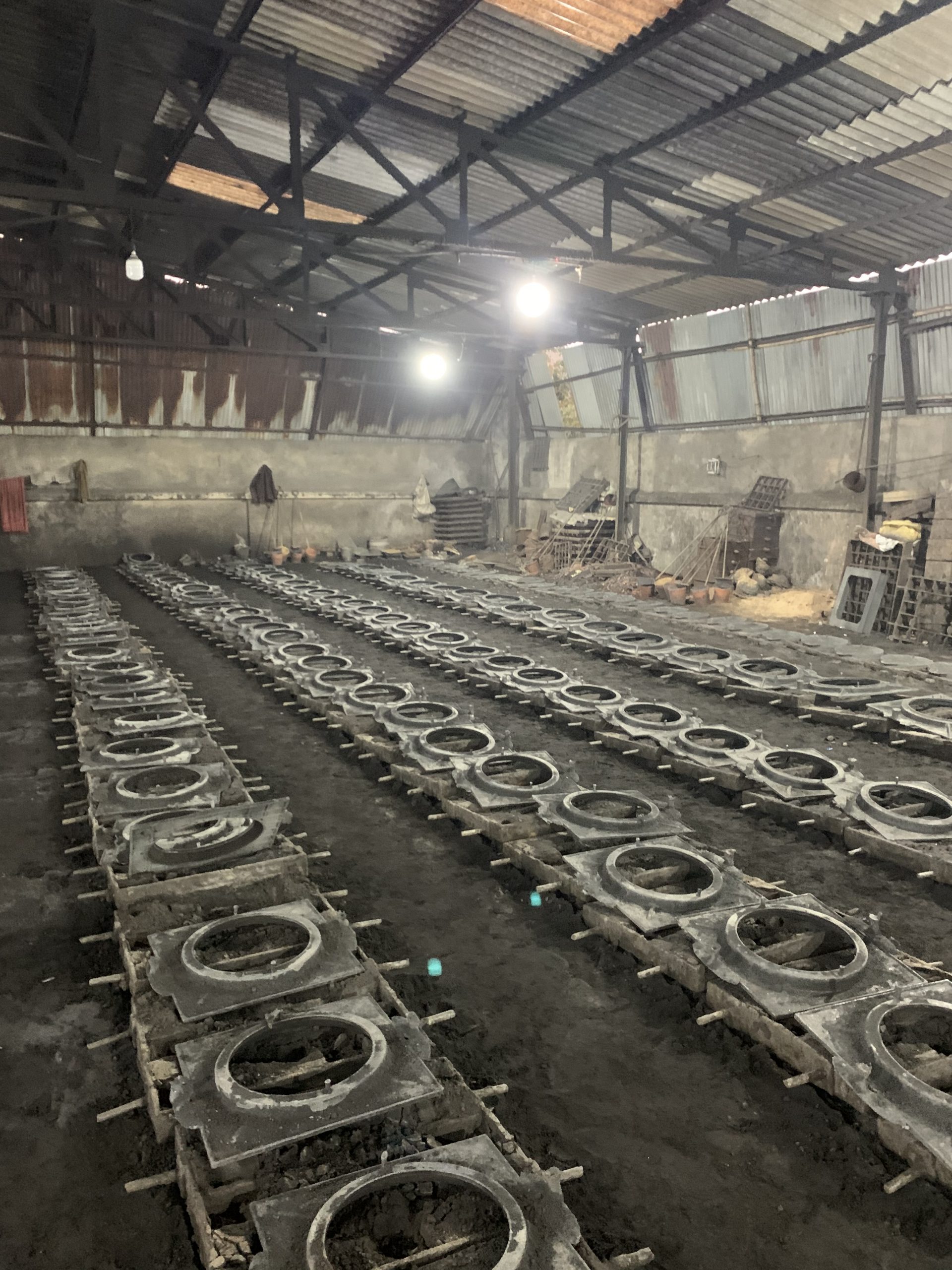

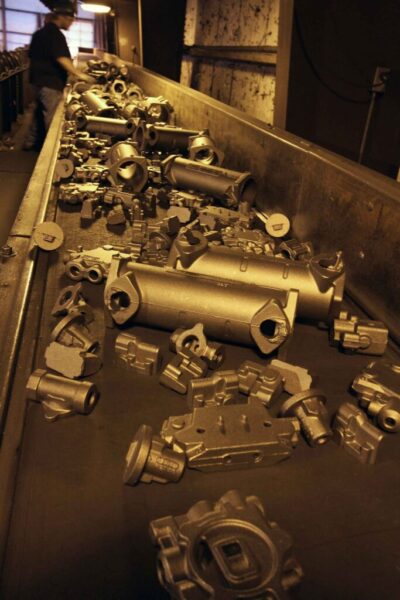

Cast iron—commonly misstated as “cast iron steel”—refers to a family of iron-carbon alloys with carbon content exceeding 2%, primarily existing as graphite flakes or nodules. Unlike steel, which is forged or rolled, cast iron is exclusively formed through casting processes, resulting in inherent material properties critical to CNC machining. Its graphite microstructure provides excellent damping capacity and wear resistance but introduces significant challenges: abrasive graphite particles accelerate tool wear, while thermal conductivity variations risk localized heat buildup and distortion. At Honyo Prototype, we specialize in precision CNC machining of gray, ductile, and compacted graphite iron (CGI), leveraging deep material science expertise to overcome these obstacles for automotive, industrial machinery, and energy sector clients.

Our process begins with rigorous material verification and pre-machining stress relief to minimize post-machining deformation. We deploy rigid, high-torque CNC platforms with minimized overhangs to suppress chatter—a critical factor given cast iron’s low tensile strength and propensity for chipping. Carbide tooling with specialized coatings (TiAlN, AlTiN) and positive rake geometries are standard, optimized for controlled chip breaking and reduced friction. Coolant strategies are tailored per application: dry machining for graphite-rich grades to avoid thermal shock, or targeted high-pressure coolant for ductile iron to evacuate fines and prolong tool life. Crucially, we implement adaptive feed-rate control to maintain consistent chip load during interrupted cuts, directly extending tool longevity by 30–50% versus conventional methods.

Material selection directly dictates machinability and final part performance. The table below outlines key grades we routinely machine, with corresponding Honyo-optimized parameters:

| ASTM Grade | Typical Application | Hardness (HB) | Max Cutting Speed (m/min) | Honyo Tooling Recommendation |

|————|———————|—————|—————————|——————————|

| A48 Class 30 | Engine blocks, housings | 170–207 | 120–150 | K10/K20 carbide inserts, 0° rake |

| A536 65-45-12 | Gears, crankshafts | 149–187 | 90–120 | Ceramic inserts for roughing, PVD-coated carbide for finishing |

| ISO 185 JG 400 | Hydraulic manifolds | 163–212 | 100–130 | CBN-tipped tools for critical sealing surfaces |

Honyo Prototype maintains ISO 9001-certified workflows with in-process CMM validation to ensure geometric tolerances per ISO 2768-mK and surface finishes down to Ra 0.8 µm. Our facility’s 5-axis milling and turning centers accommodate parts up to Ø1,200 mm, with dedicated deburring and graphite containment protocols to prevent cross-contamination. By integrating material-specific toolpath strategies—such as climb milling to reduce edge chipping and optimized stepovers for graphite flake integrity—we consistently achieve first-pass yield rates exceeding 95% on complex cast iron components. This precision, coupled with rapid prototyping scalability, positions Honyo as the strategic partner for demanding cast iron applications where reliability and dimensional accuracy are non-negotiable.

Technical Capabilities

Shenzhen Honyo Prototype delivers precision CNC machining services for cast iron steel components, supporting industries that demand high wear resistance, thermal stability, and mechanical strength. Our advanced 3-axis, 4-axis, and 5-axis milling capabilities, combined with precision turning, enable the production of complex geometries with consistent accuracy and surface integrity. Cast iron steel—commonly referring to high-strength cast iron alloys such as gray iron, ductile iron, and compacted graphite iron—is widely used in automotive, industrial machinery, and tooling applications due to its excellent damping capacity and machinability. At Honyo Prototype, we specialize in machining these materials to meet stringent engineering requirements, including tight tolerances and fine surface finishes.

Our 3-axis milling platform is optimized for prismatic parts with straightforward geometries, delivering high repeatability and throughput. For components requiring multi-sided access or complex contours, our 4-axis and 5-axis CNC machining centers provide enhanced flexibility, reducing setup time and improving positional accuracy. Simultaneous 5-axis machining allows for the production of intricate features such as undercuts, helical bores, and sculptured surfaces that are difficult to achieve with conventional methods. All machines are equipped with high-precision spindles, thermal compensation systems, and real-time tool monitoring to ensure dimensional consistency across production runs.

In addition to multi-axis milling, our CNC turning centers support bar feeding, live tooling, and C-axis contouring for the complete machining of rotational parts. This enables us to produce shafts, flanges, housings, and other cylindrical components from cast iron steel in a single setup, minimizing handling and maximizing precision.

Tight tolerance machining is a core capability at Honyo Prototype. We routinely hold tolerances down to ±0.005 mm (±0.0002″) for critical dimensions, with form and positional tolerances maintained per ISO 2768-mK or customer-specified GD&T standards. Surface finishes as fine as Ra 0.8 μm (32 μin) are achievable through optimized toolpaths and post-machining polishing when required.

The table below outlines our standard machining specifications for common cast iron steel materials:

| Material Type | Common Grades | Typical Applications | Max Part Size (mm) | Standard Tolerance (mm) | Tight Tolerance (mm) | Surface Finish (Ra, μm) |

|———————|———————–|——————————–|——————–|————————–|———————–|————————–|

| Gray Cast Iron | HT250, FC250, GG25 | Engine blocks, brake discs | 800 × 600 × 500 | ±0.02 | ±0.005 | 1.6 – 3.2 |

| Ductile Cast Iron | QT450, FCD450, GGG40 | Gears, pump housings | 700 × 500 × 400 | ±0.02 | ±0.008 | 1.6 – 2.5 |

| Compacted Graphite Iron | CGI-450 | Cylinder heads, turbo housings | 600 × 500 × 350 | ±0.03 | ±0.01 | 3.2 – 6.3 |

All cast iron steel components undergo in-process and final inspection using CMMs, optical comparators, and surface roughness testers to ensure compliance with engineering drawings. At Shenzhen Honyo Prototype, we combine advanced CNC technology with deep material expertise to deliver high-integrity cast iron steel parts for mission-critical applications.

From CAD to Part: The Process

Cast Iron Steel CNC Machining Workflow: From CAD to Precision Part

At Shenzhen Honyo Prototype, our cast iron steel CNC machining process transforms digital designs into high-integrity physical components through a rigorously controlled three-phase workflow. This methodology ensures dimensional accuracy, material integrity, and on-time delivery for demanding industrial applications. Cast iron steel—primarily ASTM A48 Class 30 gray iron or equivalent alloys—requires specialized handling due to its graphite microstructure, thermal expansion characteristics, and susceptibility to vibration-induced cracking. Our workflow mitigates these challenges systematically.

The process initiates with AI-Powered Quoting. Upon receiving a CAD model (STEP, IGES, or native formats), our proprietary AI engine performs instant geometric analysis. It identifies critical features—thin walls, deep cavities, tight tolerances (±0.005mm achievable)—and material removal volume. The system cross-references historical data on cast iron machining parameters, tool wear rates, and setup complexity to generate a technically accurate quote within 2 hours. This phase prevents under-quoting risks by flagging features prone to deflection or thermal distortion during machining, such as unsupported ribs or asymmetric geometries.

Next, Engineering-Driven DFM Analysis commences upon order confirmation. Our manufacturing engineers conduct a hands-on Design for Manufacturability review, focusing exclusively on cast iron’s constraints. We verify minimum wall thickness (1.5mm absolute minimum, 3mm recommended), assess fillet radii to prevent stress concentrations at corners, and validate datum schemes for stable fixturing. Crucially, we simulate thermal loads to adjust tolerances for post-machining stabilization, as cast iron undergoes microstructural stress relief. Any conflict—like a 0.8mm web section or non-machinable undercuts—is resolved collaboratively with the client before toolpath generation, eliminating costly rework.

Precision CNC Production executes the validated design using optimized parameters. All cast iron components are machined on rigid, high-torque CNC centers with vibration-damping foundations. We strictly adhere to material-specific cutting strategies:

| Parameter | Cast Iron Steel Setting | Rationale |

|——————–|————————-|——————————————–|

| Spindle Speed | 80-150 SFM | Minimizes thermal shock & graphite pullout |

| Feed Rate | 0.004-0.010 IPT | Prevents chipping at graphite interfaces |

| Coolant | Dry or Air Blast | Avoids thermal cracking from quenching |

| Tool Material | Carbide (K-class grade) | Resists abrasive graphite wear |

| Depth of Cut | ≤ 1.5mm | Controls vibration on thin sections |

Parts undergo in-process CMM checks at critical stages (e.g., after roughing, semi-finishing) to verify dimensional stability. Final inspection includes surface roughness validation (Ra 1.6µm typical) and visual examination for micro-cracks using magnaflux dye penetrant where specified. Rigorous deburring follows, utilizing non-marring techniques to preserve edge integrity.

This integrated workflow—from AI-informed quoting through physics-based DFM to material-optimized CNC execution—ensures Shenzhen Honyo Prototype delivers cast iron steel components that meet exacting functional and geometric requirements. By embedding material science expertise into every phase, we transform complex CAD models into reliable, production-ready parts with zero compromise on structural integrity.

Start Your Project

Start Your Next CNC Machining Project with Cast Iron Steel – Precision You Can Trust

When it comes to high-performance CNC machining, selecting the right material is only half the equation. At Shenzhen Honyo Prototype, we understand that cast iron steel demands not only precision but also expertise in thermal management, tooling selection, and dimensional stability. Whether you’re developing industrial tooling, automotive components, or heavy-duty machinery parts, our advanced CNC capabilities ensure your cast iron steel project meets the highest standards of quality, durability, and accuracy.

Cast iron steel combines the compressive strength and wear resistance of cast iron with the tensile strength and ductility of steel, making it an ideal choice for applications under high stress and thermal load. However, its abrasive nature and variable microstructure present unique challenges during machining. At Honyo Prototype, we leverage decades of manufacturing experience and state-of-the-art CNC equipment to deliver consistent, high-tolerance results—turning complex designs into reliable, production-ready components.

Our facility in Shenzhen is equipped with multi-axis CNC centers, high-rigidity milling machines, and advanced cooling systems optimized for cast iron steel machining. From prototype development to low-volume production runs, we maintain tight control over every phase of the process, including material sourcing, precision cutting, surface finishing, and quality inspection. Our team applies adaptive cutting strategies and specialized carbide tooling to minimize tool wear and prevent surface cracking, ensuring optimal surface integrity and dimensional accuracy.

We recognize that every project has unique requirements. That’s why we offer fully customizable machining services tailored to your design specifications, material grade, and performance needs. Whether you’re working with gray cast iron, ductile iron, or alloyed cast steel, we provide expert consultation to help you select the best material variant and machining approach for your application.

To ensure transparency and efficiency, we provide detailed process documentation, first-article inspection reports, and real-time project updates. Our quality management system complies with international standards, giving you confidence in every component we produce.

Below are typical machining specifications we support for cast iron steel components:

| Parameter | Standard Capability | Maximum Capability |

|—————————-|———————————-|———————————-|

| Tolerance | ±0.005 mm | ±0.002 mm (tight tolerance) |

| Surface Finish | Ra 3.2 µm | Ra 0.8 µm (precision finish) |

| Maximum Part Size | 800 x 500 x 400 mm | 1200 x 800 x 600 mm |

| Common Grades Used | GG25, GGG40, EN-GJL-250, ASTM A48 | Custom alloyed cast steels |

| Lead Time (Prototype) | 7–10 working days | 12–15 working days (complex) |

Ready to bring your next cast iron steel project to life? Contact Susan Leo at Shenzhen Honyo Prototype today. With our technical expertise and customer-first approach, we ensure your design is manufactured to exact specifications—on time and to the highest quality standards.

Email Susan Leo at info@hy-proto.com to discuss your project requirements, request a quote, or schedule a technical consultation. Let Honyo Prototype be your trusted partner in precision CNC machining.
