Manufacturing Insight: CNC Files for Sale

CNC machining remains a cornerstone of precision manufacturing, transforming digital designs into high-integrity physical components through subtractive processes. At the heart of this workflow lies the CNC file—the critical digital blueprint that dictates toolpaths, feeds, speeds, and geometries. These files, typically generated via CAD/CAM software, serve as the universal language between design intent and machine execution. Common formats include STEP, IGES, and native CAD files (e.g., SolidWorks, Fusion 360), each offering distinct advantages in data fidelity and compatibility. For manufacturers, receiving well-structured CNC files minimizes interpretation errors, accelerates setup, and ensures dimensional accuracy down to the micron level. Poorly optimized files, however, introduce risks like tool collisions, surface imperfections, or scrapped parts—underscoring why technical rigor in file preparation directly impacts cost, lead time, and part functionality.

Shenzhen Honyo Prototype leverages 15+ years of CNC expertise to bridge the gap between digital design and flawless production. We specialize in processing customer-provided CNC files for rapid prototyping and low-volume production, with a focus on materials ranging from aerospace-grade aluminum and titanium to engineering plastics like PEEK and Delrin. Our ISO 9001-certified facility employs 3-, 4-, and 5-axis machining centers paired with rigorous first-article inspection protocols. This ensures adherence to tight tolerances while accommodating complex geometries often demanded in medical, automotive, and electronics applications. Crucially, we don’t merely execute files—we proactively review submissions for manufacturability, identifying potential pitfalls like thin walls, inadequate tool clearance, or non-optimal stock sizes before cutting begins. This collaborative approach reduces iterations and prevents costly rework.

Our technical capabilities are engineered for real-world manufacturability:

| Parameter | Specification |

|——————–|—————————————-|

| Materials | Aluminum 6061/7075, Stainless Steel 303/316, Titanium Grade 5, Brass, POM, PEEK |

| Tolerances | ±0.005 mm (standard), ±0.002 mm (precision) |

| Max Work Envelope | 1000 x 600 x 500 mm (5-axis) |

| Surface Finishes | As-machined, Bead Blast, Anodize (Type II/III), Passivation |

| Lead Time | 3–7 days (standard prototyping) |

Beyond file execution, Honyo integrates value-added services such as DFM analysis, material certification, and assembly support. We recognize that a CNC file is not merely a data package but a strategic asset—and our role extends to safeguarding its integrity from upload to shipment. By combining advanced machinery with veteran engineering oversight, we consistently deliver parts that meet functional requirements on the first attempt. For design teams seeking to accelerate time-to-market without compromising quality, partnering with a manufacturer that treats CNC files as the foundation of precision—not just inputs—proves indispensable. Contact Honyo Prototype to leverage our technical infrastructure for your next CNC project.

Technical Capabilities

Technical Capabilities: Precision CNC Machining at Shenzhen Honyo Prototype

Shenzhen Honyo Prototype delivers advanced CNC machining services tailored for industries requiring high-precision components, including aerospace, medical, robotics, and industrial automation. Our facility is equipped with state-of-the-art 3-axis, 4-axis, and 5-axis CNC milling centers, as well as multi-axis CNC turning machines, enabling us to produce complex geometries with exceptional accuracy and surface finish. Each machine is maintained to OEM specifications and operated by certified engineers with over a decade of experience in prototype and low-volume production machining.

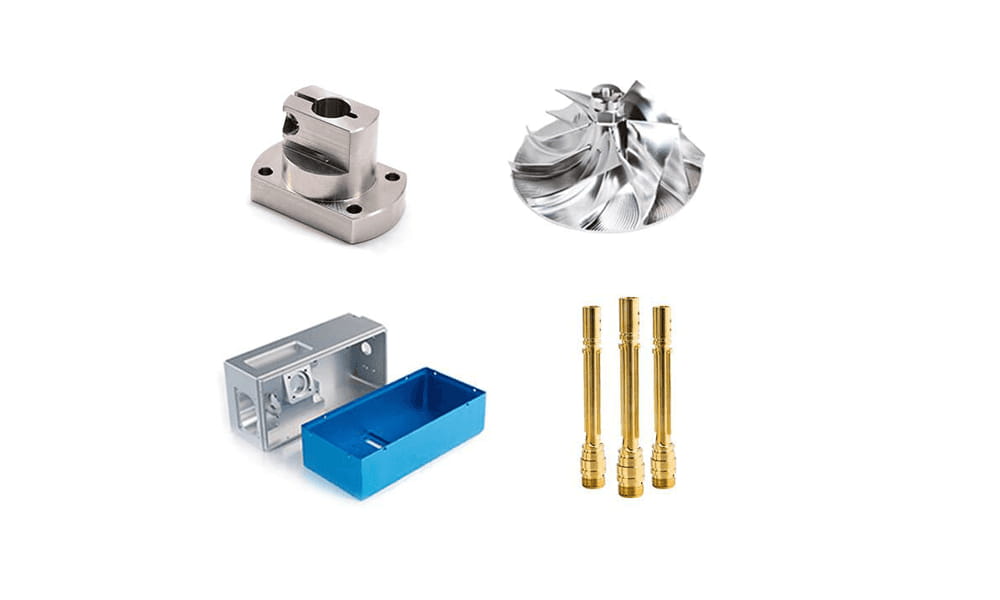

Our 3-axis milling capability supports rapid production of prismatic parts with excellent dimensional control, ideal for housings, brackets, and mechanical assemblies. For components requiring access to multiple faces or compound angles, our 4-axis and 5-axis machining centers eliminate the need for multiple setups, reducing lead time and enhancing positional accuracy. The integration of rotary axes allows for continuous contouring and the machining of organic shapes, turbine blades, impellers, and other complex features that are unattainable with traditional 3-axis systems.

In addition to milling, our CNC turning services accommodate bar stock up to Ø80 mm, supporting both single-spindle and dual-gang tooling configurations. This enables efficient production of shafts, connectors, bushings, and other cylindrical components with tight concentricity and surface integrity. Secondary operations such as cross-drilling, knurling, threading, and parting are performed in-house, minimizing external dependencies and ensuring process consistency.

A cornerstone of our service offering is our commitment to tight-tolerance machining. We routinely hold tolerances down to ±0.005 mm (±0.0002″) on critical dimensions, with geometric tolerances maintained per ISO 2768-mK and ASME Y14.5 standards. Our quality assurance process includes first-article inspection (FAI), in-process checks using high-accuracy CMMs and optical comparators, and final inspection reports traceable to NIST standards.

The table below outlines our standard tolerance capabilities and compatible materials for CNC-machined parts:

| Feature | Standard Tolerance | Tight Tolerance Option | Compatible Materials |

|——–|——————–|————————|————————|

| Linear Dimensions | ±0.05 mm | ±0.005 mm | Aluminum (6061, 7075, 2024), Stainless Steel (303, 304, 316), Steel (1018, 4140), Titanium (Grade 2, 5), Brass (C3604), Plastics (PEEK, Delrin, Nylon) |

| Hole Diameter | ±0.025 mm | ±0.01 mm | |

| Positional Tolerance | ±0.05 mm | ±0.01 mm | |

| Surface Roughness (Ra) | 3.2 µm | 0.8 µm (polished) | |

| Angular Tolerance | ±0.1° | ±0.05° | |

All CNC files for sale are delivered in industry-standard formats including STEP, IGES, and native CAD files upon request, with full geometric dimensioning and tolerancing (GD&T) documentation. Our engineering team reviews every design for manufacturability to ensure optimal tool access, wall thickness, and feature feasibility prior to machining.

At Shenzhen Honyo Prototype, we combine precision engineering with agile manufacturing to deliver CNC-machined components that meet the most demanding technical requirements.

From CAD to Part: The Process

From CAD to Part: Honyo Prototype’s CNC Production Workflow

Shenzhen Honyo Prototype delivers precision CNC machined parts through a rigorously defined digital workflow, ensuring efficiency and quality from initial inquiry to final shipment. Our integrated process eliminates traditional bottlenecks, providing clients with rapid turnaround without compromising on manufacturability or accuracy. The core sequence begins with AI-powered quoting, transitions through critical Design for Manufacturability (DFM) analysis, and culminates in seamless production execution.

The workflow initiates when a client submits a CAD file via our online portal. Honyo’s proprietary AI quoting engine immediately processes the geometry, material selection, and requested quantity. Unlike manual systems, this AI evaluates toolpath complexity, fixture requirements, and machine time with exceptional speed, generating a highly accurate cost and lead time estimate within minutes. This initial step provides immediate transparency, allowing clients to make informed decisions early in the sourcing process. Crucially, the AI also performs preliminary feasibility checks, flagging potential issues like unachievable tolerances or geometric constraints before formal order placement.

Upon order confirmation, the CAD model enters our mandatory DFM analysis phase. This is where Honyo’s engineering expertise provides significant value. Our senior manufacturing engineers conduct a thorough review, focusing on optimizing the design for CNC production. We proactively identify opportunities to enhance manufacturability – suggesting adjustments to wall thicknesses, radii, or hole depths to reduce machining time and cost, while maintaining functional integrity. We rigorously verify all critical dimensions against standard CNC capabilities and propose solutions for features requiring specialized operations like multi-axis machining or EDM. Client collaboration is key; we provide a detailed DFM report with actionable recommendations, requiring explicit approval before proceeding. This step prevents costly errors, minimizes scrap, and ensures the final part meets both specification and budget.

Approved designs move directly into production planning. CAM programmers generate optimized, collision-free toolpaths based on the finalized geometry and material. Honyo’s integrated system ensures the CAM data inherits all DFM-approved modifications. Machinists receive comprehensive digital work instructions, including precise setup diagrams, tooling lists, and in-process inspection points. Parts are manufactured on our modern Haas and DMG MORI CNC centers, featuring stringent in-process checks against critical dimensions. Final inspection utilizes calibrated CMMs and optical comparators, verifying conformance to the original print and DFM-agreed specifications. Throughout this stage, real-time production data is monitored, enabling proactive management of any deviations.

This streamlined workflow – AI Quote enabling speed, DFM guaranteeing manufacturability, and integrated Production ensuring execution – is fundamental to Honyo Prototype’s value proposition. We transform digital designs into high-quality, functional prototypes and low-volume production parts reliably and efficiently.

Critical CNC Machining Specifications at Honyo Prototype

| Parameter | Standard Capability | Tight Tolerance Option | Notes |

| :—————– | :———————— | :——————— | :————————————- |

| Dimensional Tolerance | ±0.05 mm (±0.002″) | ±0.0125 mm (±0.0005″) | Per ISO 2768-mK / m |

| Surface Roughness | Ra 3.2 µm (125 µin) | Ra 0.8 µm (32 µin) | Machined surfaces; depends on material |

| Max Work Envelope | 1000 x 600 x 500 mm | 500 x 400 x 400 mm | 3-axis / 5-axis capabilities |

| Material Range | Metals, Plastics, Composites | Wide selection | Aluminum, Steel, Titanium, POM, PEEK |

| Lead Time (Typical) | 3-7 Days | 5-10 Days | Based on complexity, DFM approval |

Start Your Project

Start Your Project with Precision CNC Machining from Shenzhen Honyo Prototype

When it comes to bringing high-precision prototypes and custom components to life, Shenzhen Honyo Prototype stands at the forefront of CNC machining innovation. Specializing in delivering reliable, high-quality CNC files and machined parts for sale, we support engineers, product developers, and manufacturers across industries—from aerospace and medical devices to consumer electronics and automotive engineering. Our advanced 3-, 4-, and 5-axis CNC machining capabilities ensure tight tolerances, superior surface finishes, and rapid turnaround times, all tailored to your exact specifications.

At Honyo Prototype, we understand that every project begins with a vision. Whether you’re developing a single prototype or preparing for low-volume production, our team is equipped to convert your CAD models into precise CNC files optimized for manufacturability. We support a wide range of materials, including aluminum alloys, stainless steel, titanium, brass, and engineering plastics such as PEEK, ABS, and polycarbonate. Our in-house expertise in CNC programming, toolpath optimization, and design for manufacturability (DFM) ensures that your parts are not only accurate but also cost-effective to produce.

To get started, simply share your design files in STEP, IGES, SolidWorks, or PDF format. Our engineering team will conduct a comprehensive DFM review to identify any potential issues related to geometry, tolerances, or material selection. We’ll then provide actionable feedback and recommendations—often within 12 hours—to accelerate your development cycle.

Below is an overview of our standard CNC machining capabilities:

| Specification | Detail |

|————–|——–|

| Machining Types | 3-axis, 4-axis, 5-axis CNC milling; CNC turning |

| Tolerances | Standard: ±0.05 mm; Tight: ±0.01 mm (available on request) |

| Supported Materials | Aluminum (6061, 7075), Stainless Steel (303, 304, 316), Titanium (Grade 5), Brass, PEEK, ABS, PC, Nylon |

| Surface Finishes | As-machined, Anodizing (Type II & III), Plating, Powder Coating, Bead Blasting, Polishing |

| Max Work Envelope | 1000 × 600 × 500 mm (39″ × 23.6″ × 19.7″) |

| Lead Times | As fast as 3–5 business days for standard prototypes |

| File Formats Accepted | STEP, IGES, X_T, SLDPRT, PDF, DWG, DXF |

All CNC files generated by Honyo Prototype are optimized for accuracy, efficiency, and repeatability. We maintain strict quality control using precision CMMs, optical comparators, and standardized inspection reports (including First Article Inspection reports upon request). Our ISO 9001-certified processes ensure consistency across every order, whether you’re ordering one-off prototypes or scaling to batch production.

Your next breakthrough begins with a conversation. For expert support in transforming your designs into precision-machined reality, contact Susan Leo, Customer Project Manager at Shenzhen Honyo Prototype. Reach out today at info@hy-proto.com to discuss your project requirements, request a quote, or receive technical guidance on file preparation and material selection. Let Honyo Prototype be your trusted partner in precision CNC machining—where innovation meets accuracy.
