Manufacturing Insight: Industrial Machining Services

Manufacturing Insight: Industrial Machining Services at Shenzhen Honyo Prototype

Industrial machining services represent the cornerstone of precision component manufacturing, transforming raw materials into complex, high-tolerance parts essential for aerospace, medical, automotive, and industrial equipment sectors. At Shenzhen Honyo Prototype, we leverage advanced Computer Numerical Control (CNC) technology to deliver exceptional accuracy, repeatability, and material integrity. Our industrial machining capabilities extend far beyond basic part production; we provide integrated solutions encompassing design for manufacturability (DFM) analysis, rapid prototyping, low-to-mid volume production, and stringent quality assurance, all executed within a controlled ISO 9001:2015 certified environment. This ensures components meet the rigorous demands of functional testing, pre-production validation, and end-use applications where performance and reliability are non-negotiable.

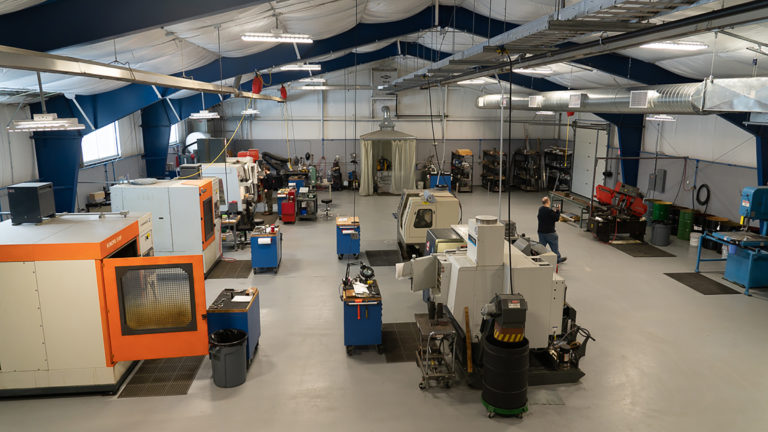

Honyo Prototype operates a modern, well-maintained fleet of CNC machining centers, strategically selected to handle diverse project complexities and material requirements. Our core capabilities include precision 3-axis, 4-axis, and 5-axis simultaneous machining, enabling the efficient production of intricate geometries with tight tolerances consistently held to ±0.005mm and surface finishes down to Ra 0.8µm. Material versatility is paramount; we routinely machine engineering plastics like PEEK, Ultem, and Delrin alongside a wide spectrum of metals including aluminum alloys (6061, 7075), stainless steels (303, 304, 316), titanium (Grade 2, 5), brass, and copper. Critical machine specifications underpinning this performance are detailed below.

| Machine Type | Typical Travel (X/Y/Z mm) | Max Spindle Speed (RPM) | Positioning Accuracy (mm) | Key Applications |

| :—————– | :———————— | :———————- | :———————— | :—————————————- |

| 3-Axis Vertical Mill | 800 x 500 x 500 | 10,000 | ±0.003 | Brackets, housings, jigs, fixtures |

| 4-Axis Vertical Mill | 1000 x 600 x 600 | 12,000 | ±0.003 | Complex contours, rotational features |

| 5-Axis Simultaneous | 600 x 500 x 400 | 24,000 | ±0.002 | Aerospace impellers, medical implants |

| Precision Lathe | Ø400 x 500 | 6,000 | ±0.002 | Shaft components, bushings, connectors |

| High-Speed Mill | 500 x 400 x 300 | 30,000 | ±0.0015 | Thin-wall features, optical surfaces |

Beyond core machining, Honyo integrates secondary processes such as precision grinding, tapping, thread forming, knurling, and selective surface treatments including anodizing, plating, and passivation, providing true turnkey manufacturing solutions. Our engineering team collaborates closely with clients during the quotation and DFM stage, proactively identifying potential manufacturability issues to optimize part design, reduce lead times, and minimize costs without compromising functionality. This collaborative approach, combined with 24/7 production capacity and streamlined logistics from our Shenzhen facility, ensures rapid turnaround – often delivering precision-machined prototypes within 3-5 working days and production batches with exceptional consistency.

Quality is embedded throughout our industrial machining workflow. Every critical dimension undergoes rigorous inspection using calibrated Coordinate Measuring Machines (CMM), optical comparators, and surface roughness testers, with full First Article Inspection (FAI) reports available upon request. Shenzhen Honyo Prototype is committed to being your trusted partner in precision, delivering industrial machining services that transform complex designs into high-performance reality with unwavering reliability and technical excellence.

Technical Capabilities

Technical Capabilities in Industrial Machining Services

Shenzhen Honyo Prototype delivers precision industrial machining services tailored for high-complexity components across aerospace, medical, automotive, and industrial equipment sectors. Our advanced CNC machining capabilities include 3-axis, 4-axis, and 5-axis milling, as well as precision turning, enabling us to produce intricate geometries with repeatable accuracy and tight tolerances. Our facility is equipped with state-of-the-art CNC machining centers from industry-leading manufacturers, ensuring high-speed, high-precision material removal with minimal thermal distortion and optimal surface finish.

Our 3-axis milling services are ideal for prismatic parts with straightforward geometries, offering fast turnaround and excellent dimensional control. For components requiring access to multiple faces or complex contours, our 4-axis CNC milling extends capabilities with rotational indexing around the A-axis, allowing for efficient machining of cylindrical features and compound angles. For the most complex freeform surfaces and minimal setup requirements, our 5-axis simultaneous milling technology enables dynamic tool orientation, reducing cycle times and improving surface quality on advanced components such as impellers, turbine blades, and structural aerospace parts.

In addition to multi-axis milling, we offer precision CNC turning for cylindrical and rotational parts. Our turning centers support live tooling and sub-spindles, enabling mill-turn operations that combine turning, drilling, tapping, and cross-milling in a single setup. This capability is particularly beneficial for high-precision shafts, fittings, and connectors where concentricity and feature alignment are critical.

A cornerstone of our service is our ability to achieve tight tolerances consistently. We maintain standard tolerances of ±0.005 mm (±0.0002″) for critical dimensions, with the capacity to hold ±0.002 mm (±0.00008″) under controlled conditions for high-precision applications. Our quality assurance process includes first-article inspection, in-process checks, and final CMM verification to ensure compliance with ISO 2768 and customer-specific GD&T requirements.

We support a broad range of engineering-grade materials, including aluminum alloys, stainless and carbon steels, titanium, brass, copper, and high-performance plastics such as PEEK, PTFE, and ULTEM. Each material is processed using optimized toolpaths, cutting parameters, and fixturing strategies to maintain integrity and dimensional stability.

The following table outlines our standard technical specifications for industrial machining services:

| Parameter | 3-Axis Milling | 4-Axis Milling | 5-Axis Milling | CNC Turning |

|——————————|——————–|——————–|——————–|——————–|

| Max Working Volume (mm) | 1000 × 600 × 500 | 800 × 500 × 400 | 600 × 500 × 400 | Ø300 × 500 L |

| Positioning Accuracy (mm) | ±0.005 | ±0.005 | ±0.003 | ±0.005 |

| Repeatability (mm) | ±0.003 | ±0.003 | ±0.002 | ±0.003 |

| Standard Tolerance (mm) | ±0.005 | ±0.005 | ±0.005 | ±0.005 |

| Tight Tolerance Capability | ±0.002 | ±0.002 | ±0.002 | ±0.002 |

| Surface Finish (Ra, µm) | 0.8 – 3.2 | 0.8 – 3.2 | 0.8 – 3.2 | 0.8 – 3.2 |

We routinely machine materials including but not limited to:

| Material Type | Examples |

|———————|—————————————|

| Aluminum Alloys | 6061, 7075, 2024, 5052 |

| Stainless Steels | 303, 304, 316, 17-4PH, 440C |

| Carbon & Alloy Steels | 1018, 4140, 8620 |

| Titanium | Grade 2, Grade 5 (Ti-6Al-4V) |

| Brass & Copper | C36000, C11000 |

| Engineering Plastics| PEEK, PTFE, Nylon, ULTEM, Acetal |

At Shenzhen Honyo Prototype, our technical capabilities are backed by rigorous process validation and a commitment to on-time delivery without compromising quality.

From CAD to Part: The Process

From CAD to Part: Honyo Prototype’s Industrial CNC Machining Workflow

At Shenzhen Honyo Prototype, our industrial CNC machining services transform client CAD models into precision-engineered components through a rigorously defined, three-phase workflow. This structured approach ensures manufacturability, minimizes lead times, and guarantees part quality from initial inquiry to final shipment, adhering strictly to ISO 9001 standards.

The process initiates with AI-Powered Quoting. Clients submit 3D CAD files (STEP, IGES, or native formats) via our secure portal. Our proprietary AI engine instantly analyzes the geometry, material specifications, and requested quantities. It cross-references real-time data on machine availability, tooling requirements, material costs, and historical production metrics. This eliminates manual interpretation errors and delivers a detailed, accurate quote within hours—not days—including breakdowns for machining time, material, finishing, and quality control. The AI system flags potential ambiguities, such as undefined tolerances or complex undercuts, prompting immediate client clarification to prevent downstream delays.

Following quote acceptance, the project enters Engineering-Driven DFM (Design for Manufacturability) Review. Our senior manufacturing engineers conduct a comprehensive analysis beyond basic AI checks. We scrutinize wall thicknesses, feature accessibility, tool clearance, datum schemes, and tolerance stack-ups against our CNC capabilities. Critical considerations include minimizing setups to reduce cost and error potential, optimizing stock size to conserve material, and identifying opportunities for multi-axis machining to achieve complex geometries in fewer operations. Client collaboration is essential here; we provide actionable feedback with suggested modifications—such as adjusting fillet radii or repositioning features—to enhance producibility without compromising function. This phase typically resolves 95% of potential production issues before cutting metal.

Precision Production Execution commences only after formal DFM sign-off. Raw material certification is verified upon receipt. Programs are generated using Mastercam and Siemens NX, with all toolpaths rigorously simulated offline to prevent collisions. Machining occurs on our HAAS, DMG MORI, and Makino centers under strict environmental controls. In-process inspections via Renishaw probes ensure dimensional accuracy at critical stages. Final parts undergo comprehensive CMM validation against the original CAD model, with full first-article inspection reports (FAIR) provided. Surface finishes, deburring, and secondary operations like anodizing or plating are meticulously controlled per specifications. Every component receives traceability tagging, and PPAP Level 3 documentation is available upon request.

Key production capabilities enabling this workflow include:

| Parameter | Capability Range | Standard Tolerance |

|——————–|————————————–|———————|

| Materials | Aluminum, Steel, Titanium, Plastics | ±0.005 mm |

| Max Work Envelope | 1000 x 600 x 500 mm (3-axis) | |

| | 500 mm diameter x 400 mm (5-axis) | |

| Surface Finish | Ra 0.8 µm (as-machined) to Ra 0.2 µm | |

| Lead Time (Typical)| 5-15 working days (complexity dep.) | |

This integrated workflow—AI quoting for speed, engineering-led DFM for risk mitigation, and precision production with full traceability—ensures Honyo Prototype delivers industrial-grade CNC machined parts that meet exact functional requirements, on schedule, and with zero compromise on quality. We partner with clients to turn designs into reality, efficiently and reliably.

Start Your Project

Start Your Industrial Machining Project with Precision and Confidence

When it comes to high-performance industrial machining services, precision, material integrity, and on-time delivery are non-negotiable. At Shenzhen Honyo Prototype, we specialize in delivering CNC machining solutions that meet the exacting standards of industries ranging from aerospace and automation to medical devices and energy systems. Our advanced manufacturing capabilities, combined with rigorous quality control protocols, ensure that every component we produce adheres to the tightest tolerances and highest surface finish requirements.

Whether you’re developing a single prototype or scaling to low-to-mid volume production, our team of experienced manufacturing engineers is ready to support your project from concept to completion. We understand that every design presents unique challenges—material selection, geometric complexity, secondary operations, and regulatory compliance among them. That’s why we take a consultative approach, working closely with your engineering team to optimize manufacturability, reduce lead times, and control costs without compromising performance.

Our CNC machining services include multi-axis milling, turning, wire EDM, and high-speed machining, supported by in-house metrology using coordinate measuring machines (CMM) and optical inspection systems. We process a wide range of engineering-grade materials, including aluminum alloys (6061, 7075), stainless steels (303, 304, 316), titanium, brass, copper, and engineering plastics such as PEEK, PTFE, and Delrin.

To ensure seamless project initiation, we accept industry-standard file formats including STEP, IGES, SolidWorks, and DWG. Our engineering team performs a comprehensive Design for Manufacturability (DFM) review upon receipt of your CAD data, providing actionable feedback to enhance part functionality and streamline production.

Below are key technical specifications for our industrial CNC machining services:

| Parameter | Specification |

|——————————|———————————————-|

| Positioning Accuracy | ±0.005 mm |

| Repeatability | ±0.003 mm |

| Maximum Work Envelope | 1200 × 600 × 500 mm (47 × 23.6 × 19.7 in) |

| Minimum Feature Size | 0.3 mm (milling), 0.15 mm (wire EDM) |

| Surface Roughness (Ra) | As low as 0.4 µm (16 µin) |

| Standard Tolerances | ±0.05 mm (standard), ±0.01 mm (precision) |

| Secondary Operations | Anodizing, plating, passivation, laser marking, heat treatment |

| Lead Times | 5–15 days (depending on complexity and volume) |

We are committed to transparency, responsiveness, and technical excellence. Starting your project is simple: send your 3D model or technical drawings, and we’ll provide a detailed quotation within 12 hours.

For immediate assistance and personalized engineering support, contact Susan Leo, Customer Project Manager at Shenzhen Honyo Prototype. With over a decade of experience in precision manufacturing, Susan ensures your project receives the attention, expertise, and coordination it deserves.

Reach out today at info@hy-proto.com to begin your next machining project with confidence. Let Honyo Prototype be your trusted partner in industrial CNC machining—where engineering vision meets manufacturing reality.
