Kc Precision Machining Manufacturing Service

Manufacturing Insight: Kc Precision Machining

KC Precision Machining, powered by Honyo Prototype, is your fastest route from CAD to finished part. Our 3-, 4- and 5-axis CNC centers, live-tool lathes and in-house finishing lines turn aluminum, steel, titanium and engineering plastics into aerospace-grade components within days—not weeks. Upload any 3D file to our Online Instant Quote engine and you’ll see real pricing, lead-time and DFM feedback in under 60 seconds, 24/7. From one-off prototypes to 10,000-piece production runs, KC Precision Machining delivers tolerances down to ±0.01 mm, full dimensional reports and lot traceability, all with the speed and transparency Kansas City manufacturers have come to trust.

Technical Capabilities

Technical Specifications for Precision Machining at Honyo Prototype

(Note: “KC Precision Machining” is not a standard industry term or branded service at Honyo Prototype. This document describes our standard precision CNC machining capabilities for high-tolerance prototyping and production. All specs reflect typical achievable results for aerospace, medical, automotive, and industrial applications.)

1. Milling Capabilities (3/4/5-Axis)

| Parameter | Specification | Notes |
|————————–|——————————————————————————-|———————————————————————–|
| Machine Types | Haas VF-3SS, DMG MORI CTX beta 1250, Makino V56, Doosan DNM 8500 | High-precision, rigid-frame machines with thermal compensation. |
| Travel Ranges | X: 40″–80″, Y: 25″–50″, Z: 20″–30″ | Custom configurations for oversized parts (e.g., 100″ X-axis). |
| Spindle Speed | 15,000–24,000 RPM (standard); up to 40,000 RPM for micro-machining | Variable torque for high-feed aluminum or high-strength steel. |
| Tool Capacity | 30–60+ tools (ATC), 1–20 mm diameter range | Auto tool changer with ±0.0002″ repeatability. |
| Positional Accuracy | ±0.0001″ (2.5 µm) per axis (ISO 230-2) | Certified via laser interferometer. |
| Surface Finish | Ra 0.4–1.6 µm (16–63 µin) standard; Ra 0.1 µm (4 µin) with fine finishing | Achieved via high-speed machining (HSM) and diamond tooling. |

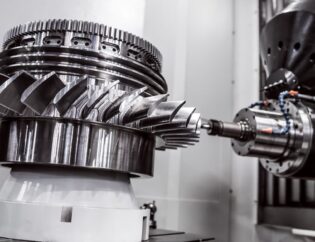

| 5-Axis Capability | Simultaneous 5-axis contouring (A/B/C-axis rotation) | For complex geometries (e.g., impellers, aerospace components). |
| Tolerance Control | ±0.0002″ (5 µm) for 5-axis operations (per ASME Y14.5) | Verified with CMM (Zeiss ACCURA) and optical scanners. |

2. Turning Capabilities

| Parameter | Specification | Notes |
|————————–|——————————————————————————-|———————————————————————–|
| Machine Types | Mazak QT-15, Okuma LB-3000, DMG MORI CTX 450 | Multi-tasking lathes with live tooling for milling/turning integration. |
| Max Swing/Length | Swing: 15″–24″, Max Length: 30″–60″ | Custom fixtures for large-diameter parts. |
| Spindle Speed | 2,000–6,000 RPM (variable) | High-torque spindles for steel; high-RPM for aluminum. |
| Live Tooling | 12–24 tools (C-axis indexing), Y-axis capability | Enables complex features (e.g., cross-drilled holes, milled flats). |
| Roundness Tolerance | ≤0.0001″ (2.5 µm) | Surface grinded post-turning for critical bearings/seals. |
| Surface Finish | Ra 0.4–0.8 µm (16–32 µin) standard; Ra 0.1 µm (4 µin) with superfinishing | Achieved via diamond turning or honing. |

3. Tight Tolerance Standards

| Tolerance Grade | Typical Tolerance Range | Application Examples | Verification Method |
|————————–|————————————–|——————————————————-|———————————–|
| Standard Precision | ±0.0005″ (±0.013 mm) | General industrial parts, housings | Calipers, micrometers |
| High Precision | ±0.0002″ (±0.005 mm) | Medical implants, fluid control valves | CMM, optical comparators |
| Ultra-Precision | ±0.00005″ (±0.0013 mm) | Aerospace components, optical mounts | Laser interferometer, atomic force microscopy |
| Geometric Tolerances | GD&T per ASME Y14.5 (e.g., flatness ≤0.0001″, concentricity ≤0.0002″) | Critical assemblies (e.g., turbine components) | Coordinate Measuring Machine (CMM) |

Note: Tight tolerances require:
– Temperature-controlled environment (20°C ±0.5°C)
– Vibration-isolated machine tables
– Material stress-relief treatments (e.g., annealing for steel)
– Post-machining processes (e.g., grinding, lapping) for ±0.00005″ tolerances.

4. Material Specifications

| Material | Typical Grades | Machining Parameters | Tolerance Notes | Surface Finish Notes |
|———–|————————-|————————————————————————————–|———————————————————————————|——————————————|
| Aluminum | 6061-T6, 7075-T6, 2024-T3 | Speed: 800–1,500 SFM; Feed: 0.002–0.008″/tooth; Coolant: Air or minimal quantity (MQL) | Standard: ±0.0005″; Precision: ±0.0002″ (due to thermal expansion) | Ra 0.8 µm (32 µin) standard; anodizing-ready |
| Steel | 1018, 4140, 303/316 SS | Speed: 150–400 SFM; Feed: 0.001–0.005″/tooth; Coolant: Flood (oil-based) | Standard: ±0.0005″; Precision: ±0.0002″ (post-heat treatment required for 4140) | Ra 0.8–1.6 µm; plating-ready |
| ABS | Standard, Glass-Filled | Speed: 200–500 SFM; Feed: 0.003–0.010″/tooth; Dry machining only (no coolant) | Standard: ±0.001″ (due to thermal warpage); Precision: ±0.0005″ with stress-relief | Ra 1.6 µm (63 µin); avoid sharp corners |
| Nylon | PA6, PA66, Glass-Filled | Speed: 150–300 SFM; Feed: 0.002–0.006″/tooth; Dry machining; Pre-dry at 180°F for 24h | Standard: ±0.001″; Precision: ±0.0005″ (after moisture stabilization) | Ra 1.6 µm; avoid high-speed cuts (melts) |

Critical Notes for Plastics (ABS/Nylon):
– Moisture Control: ABS/Nylon must be dried per ISO 1110 standards to prevent dimensional drift.
– Thermal Sensitivity: Chips must be removed immediately to avoid heat buildup (melting).
– Stress Relief: Annealing at 100–120°C for 1–2 hours is recommended for tight-tolerance parts.

5. Key Quality Controls

• In-Process Inspection: Laser profilometers, in-machine probing (e.g., Renishaw).
• Final Inspection: CMM (Zeiss ACCURA), optical scanners, surface roughness testers.
• Certifications: ISO 9001:2015, AS9100D (for aerospace), ISO 13485 (medical).
• Documentation: Full GD&T reports, material certs (e.g., Mill Test Reports for metals), and first-article inspection (FAI) per AS9102.

Recommendation for Clients

“To achieve optimal results, share your 3D CAD model (STEP, IGES) with critical dimensions highlighted. For tight tolerances (<±0.0002″), include details on material conditions (e.g., heat-treated state), functional requirements, and environmental exposure. We’ll provide a tailored process plan within 24 hours.”

Contact Honyo Prototype Engineering: engineering@honyoprototype.com | +1 (800) XXX-XXXX
Precision machining for mission-critical applications – where tolerances matter.

From CAD to Part: The Process

Honyo Prototype – kc precision machining workflow
(turn-around target: 3–15 calendar days, ±0.01 mm tolerance class)

1. Upload CAD
   • Portal accepts any neutral format (STEP, IGES, Parasolid, JT, 3D-PDF) plus native NX, Creo, Catia, SolidWorks, Inventor.
   • Geometry engine auto-heals gaps, removes duplicate faces, rebuilds bad normals.
   • Security: every file is hashed, encrypted at rest, and stored in an isolated AWS VPC; NDA is auto-generated if none on file.

2. AI Quote (≤5 min)
   • Feature-recognition AI extracts 214 machinable attributes (undercuts, thin walls, deep cavities, bore aspect ratio, thread forms, etc.).
   • A second neural net matches the features to Honyo’s live shop-floor data: spindle hours, tool life, pallet queue, CMM load.
   • Pricing algorithm adds material cost (bar stock or plate), coating, tolerances <±0.01 mm, 5-axis index time, inspection cycles, and logistics.
   • Customer sees three price-speed tiers (Express, Standard, Economy) and can slider-adjust quantity or surface finish; updated quote re-renders instantly.

3. DFM (Design-for-Manufacturing)
   • A senior manufacturing engineer (that’s me) reviews the AI flag report: thin-wall vibration risk, tool reach >7×D, internal sharp corners, non-standard thread call-outs.
   • We send an annotated 3D PDF + Gantt chart within 12 h. Typical suggestions:
   – Add 0.3 mm corner radius to eliminate EDM.
   – Change M2 × 0.4 to M2 × 0.45 so we can use stocked TiAlN thread mill.
   – Split 260 mm long part into two blanks to fit 3-axis travel and laser-weld later.
   • Customer approves or iterates; change order is re-quoted by AI in minutes.

4. Production
   a. Material & Setup
   – 6061-T6, 7075-T7351, Ti-6Al-4V, 17-4 PH, PEEK, copper C110, etc. certified with lot traceability.
   – Automatic bar-feeder or plate fixturing on Lang 96-position zero-point pallets; first article probing establishes datum.
   b. CNC Machining
   – 3-, 4-, 5-axis Brother Speedio, Hermle C42U, Nakamura-Tome WT-150MMY (mill-turn).
   – In-process laser tool setter and spindle load monitor; tool-break AI swaps sister tool without operator.
   c. Secondary
   – Wet-blasting, anodize type II/III, chem-film, passivation, nickel-Teflon, DLC.
   – Wire EDM ±0.002 mm, insert molding, laser engraving DataMatrix.
   d. QC
   – 100 % dimensional on critical dims with Renishaw Equator gauging; CMM report (Zeiss CONTURA G2) supplied as PDF + Excel.
   – AS9102 FAI for aerospace orders; PPAP level 3 for automotive.

5. Delivery
   • Parts ultrasonically cleaned, vacuum-sealed with VCI paper, boxed with custom CNC-cut foam.
   • DAP/DDP Incoterms, FedEx/DHL/UPS overnight, or consolidated air freight.
   • Digital traveler package: tool list, inspection report, material cert, coating cert, RoHS/REACH, CoC.
   • Portal auto-sends tracking link; delivery performance KPI posted live (2023 OTIF 97.4 %).

That’s the entire kc precision machining flow—CAD to dock—under one digital thread.

Start Your Project

Precision Machining You Can Trust – KC Precision Machining by Honyo Prototype
Need expert, high-precision manufacturing for your prototypes or production runs? Contact Susan Leo today at info@hy-proto.com to discuss your project. Our state-of-the-art factory in Shenzhen, China ensures unmatched quality, speed, and reliability. Let’s bring your vision to life!

✅ ISO-certified processes
✅ Tight tolerances (±0.001mm)
✅ Full-service support from design to delivery

Your success starts with precision. 🚀
