Manufacturing Insight: PH Stainless Steel for Precision CNC Applications

Precipitation Hardening (PH) stainless steel represents a critical material class for high-performance CNC machining, uniquely combining the corrosion resistance of austenitic grades with martensitic hardenability. Unlike conventional stainless steels, PH alloys achieve exceptional strength through a controlled heat treatment process where microscopic precipitates form within the matrix after solution annealing and aging. This mechanism enables yield strengths exceeding 1,000 MPa while maintaining machinability in the solution-treated condition—a vital advantage for complex geometries in aerospace, medical implants, and defense components. At Honyo Prototype, we specialize in transforming PH stainless steel into mission-critical parts by mastering the interplay between material science and precision machining.

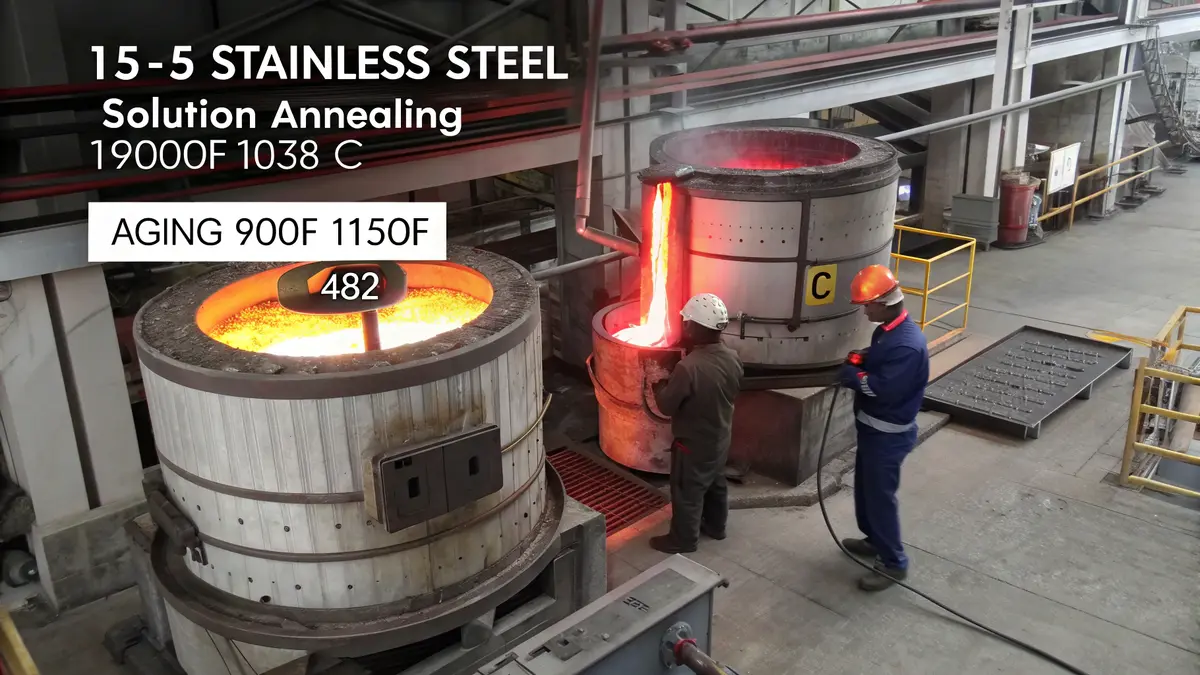

The inherent challenge with PH stainless steel lies in its sensitivity to thermal history. Machining-induced heat or residual stresses can distort parts during aging, compromising dimensional accuracy. Our Shenzhen facility addresses this through integrated process control: solution annealing at precisely calibrated temperatures (1,020–1,065°C), followed by immediate quenching to retain a soft, ductile structure ideal for CNC work. We then implement stress-relieving cycles before final aging, ensuring geometries remain stable within ±0.0002″ tolerances. Our CNC workflows use rigid setups, low-heat cutting strategies (reduced RPM, high feed rates), and cryogenic cooling to prevent work hardening—a common issue with grades like 17-4PH during deep cavity milling.

Honyo’s in-house heat treatment capabilities eliminate third-party delays and quality risks. We age parts in vacuum-controlled furnaces with ±5°C accuracy, tailoring cycles to client specifications (e.g., H900 for peak strength or H1150 for optimal toughness). This vertical integration guarantees traceability from raw bar stock to finished component, adhering to AMS 5643 and ASTM A564 standards. Below are key PH stainless steel grades we routinely machine and their performance characteristics post-aging:

| Grade | Yield Strength (MPa) | Hardness (HRC) | Key Applications |

|———-|———————-|—————-|———————————–|

| 17-4PH | 1,100–1,300 | 35–45 | Aerospace fittings, surgical tools |

| 15-5PH | 1,000–1,200 | 33–43 | Landing gear, valve components |

| Custom 455 | 1,300–1,500 | 40–48 | Missile systems, high-stress shafts |

Our technical team collaborates with clients during DFM to optimize part geometry for PH stainless steel’s behavior. We recommend avoiding thin walls below 0.5mm without support structures and specify tight tolerance zones only where functionally necessary—reducing cost without sacrificing performance. With 12+ years of PH stainless steel expertise, Honyo Prototype delivers first-article success rates above 92% for prototypes and low-volume production. All parts undergo rigorous post-aging CMM validation and MPI testing, ensuring compliance with AS9100 and ISO 13485 requirements. Partner with us to leverage PH stainless steel’s full potential, where material integrity meets micron-level precision.

Technical Capabilities

Precision CNC Machining of PH Stainless Steel at Shenzhen Honyo Prototype

Shenzhen Honyo Prototype specializes in high-precision CNC machining of precipitation-hardening (PH) stainless steels, delivering components that meet the demanding requirements of aerospace, medical, defense, and industrial applications. PH stainless steels, such as 17-4 PH, 15-5 PH, and Custom 465®, combine excellent corrosion resistance with high strength and superior dimensional stability after heat treatment. These alloys are particularly well-suited for complex geometries and tight-tolerance parts where mechanical performance under stress is critical.

Our advanced 3-axis, 4-axis, and 5-axis milling capabilities enable the production of intricate PH stainless steel components with exceptional surface finish and accuracy. Utilizing state-of-the-art CNC machining centers equipped with high-speed spindles and rigid tooling systems, we achieve consistent repeatability and fine detail resolution. Multi-axis machining allows for single-setup processing of complex features, minimizing part handling and reducing cumulative error. This is especially important when machining PH stainless grades, which can work-harden rapidly and require precise toolpath strategies to maintain integrity.

In addition to milling, our precision turning services handle bar stock and pre-formed blanks in PH stainless steel, supporting both chucking and bar-fed operations. Our turning centers are optimized for long-run consistency and tight diameter control, critical for shafts, fittings, and threaded components. All machining processes are supported by in-house heat treatment coordination, ensuring that parts are aged to the desired condition (e.g., H900, H1025, H1150) to achieve target mechanical properties without compromising dimensional accuracy.

Tight-tolerance machining is a core competency at Honyo Prototype. We routinely hold tolerances down to ±0.005 mm (±0.0002″) on critical features, with surface finishes as fine as Ra 0.4 μm (16 μin) achievable through optimized tool selection and finishing passes. Our quality assurance system includes CMM inspection, optical comparators, and surface roughness testers, ensuring full compliance with customer specifications and industry standards.

The following table outlines our standard machining capabilities and achievable tolerances for PH stainless steel:

| Parameter | 3-Axis Milling | 4-Axis Milling | 5-Axis Milling | CNC Turning |

|—————————–|———————-|———————-|———————-|———————-|

| Typical Tolerance | ±0.010 mm | ±0.010 mm | ±0.008 mm | ±0.005 mm |

| Tight Tolerance Capability | ±0.005 mm | ±0.005 mm | ±0.005 mm | ±0.003 mm |

| Surface Finish (Ra) | 1.6 – 0.8 μm | 1.6 – 0.8 μm | 1.6 – 0.4 μm | 1.6 – 0.4 μm |

| Max Work Envelope (mm) | 1000 × 600 × 500 | 800 × 600 × 500 | 600 × 500 × 400 | Ø120 × 500 L |

| Common Materials | 17-4 PH, 15-5 PH, Custom 465® | 17-4 PH, 15-5 PH | 17-4 PH, Custom 465® | 17-4 PH, 15-5 PH |

Shenzhen Honyo Prototype combines material expertise, advanced CNC technology, and rigorous quality control to deliver high-performance PH stainless steel components tailored to exact customer requirements.

From CAD to Part: The Process

Production Process: From CAD to Precision PH Stainless Steel Part

At Shenzhen Honyo Prototype, our CNC machining workflow for precipitation-hardening (PH) stainless steel, primarily 17-4PH, is engineered for efficiency and precision, transforming digital designs into high-integrity components. This structured process ensures optimal material utilization, dimensional accuracy, and adherence to critical mechanical properties inherent to PH alloys. The workflow progresses seamlessly through three integrated phases: AI-Powered Quoting, Engineering-Driven DFM, and Rigorous Production Execution.

The process initiates with the AI-Powered Quoting System. Upon secure upload of the client’s CAD file (STEP, IGES, or native formats), our proprietary AI engine performs an instant technical assessment. It analyzes geometric complexity, identifies potential undercuts or deep cavities problematic for PH steel’s work-hardening characteristics, evaluates required tolerances against material behavior, and confirms compatibility with standard 17-4PH bar stock dimensions. Crucially, the AI cross-references these factors against real-time machine availability, tooling libraries, and historical machining data specific to PH stainless. This delivers an accurate, data-driven quotation within minutes, including estimated lead time and potential high-risk features flagged for immediate engineering review, eliminating manual interpretation delays.

Following quote acceptance, the project enters the Critical DFM (Design for Manufacturability) Phase, led by our senior manufacturing engineers specializing in difficult alloys. This is non-negotiable for PH stainless steel due to its sensitivity to heat, tendency for work hardening, and stringent post-machining heat treatment requirements. Engineers conduct a meticulous review, focusing on optimizing toolpaths to minimize heat generation and vibration, verifying adequate stock allowance for stress relief before final aging, assessing fixture stability to prevent chatter-induced surface defects, and confirming that critical dimensions won’t shift during the mandatory solution treatment and aging cycles. We proactively suggest design modifications—such as adjusting radii to reduce tool deflection or repositioning features to avoid thin-wall instability—to enhance machinability, ensure part yield, and guarantee the final component achieves the required H900 or H1150 mechanical properties without costly rework.

The approved design then advances to Precision CNC Production. Machining occurs on our state-of-the-art 3-, 4-, and 5-axis CNC centers equipped with high-pressure coolant systems essential for managing PH steel’s thermal load. Production follows a strict sequence: precision stock preparation, strategic roughing with optimized parameters to manage heat and chip evacuation, stress-relief annealing if required by geometry, semi-finishing, critical final finishing passes achieving tight tolerances (±0.005mm typical), and comprehensive in-process CMM verification. All machined parts undergo mandatory solution treatment (1040°C ±10°C, air cool) followed by precise aging per grade specification (e.g., 480°C for H900) in controlled atmosphere furnaces. Final inspection validates dimensions, surface finish, and hardness against the certified material test report. Key machining parameters for 17-4PH are rigorously applied:

| Parameter | Roughing (Starting Point) | Finishing (Starting Point) | Critical Consideration |

| :—————– | :———————— | :————————- | :———————————– |

| Spindle Speed (SFM)| 150 – 200 | 200 – 250 | Reduce speed for deep cavities |

| Feed Rate (IPR) | 0.008 – 0.012 | 0.004 – 0.008 | Minimize feed to prevent work hardening |

| Depth of Cut (mm) | 1.5 – 3.0 | 0.2 – 0.5 | Shallow cuts essential for finish |

| Coolant | High-Pressure Through Tool| High-Pressure Through Tool | Mandatory for heat/chip control |

This integrated workflow, from AI-driven quoting through expert DFM to precision-controlled production and heat treatment, ensures Shenzhen Honyo Prototype consistently delivers mission-critical PH stainless steel components that meet the highest standards of quality, performance, and on-time delivery for demanding aerospace, medical, and industrial applications.

Start Your Project

Start Your Project with Precision-Engineered PH Stainless Steel Components

When it comes to high-performance applications in aerospace, medical devices, automotive, and industrial systems, precipitation-hardening (PH) stainless steel stands out for its exceptional combination of corrosion resistance, mechanical strength, and thermal stability. At Shenzhen Honyo Prototype, we specialize in CNC machining of PH stainless steel alloys, including 17-4 PH, 15-5 PH, and Custom 465®, delivering tight-tolerance, mission-critical components tailored to your exact specifications.

Whether you’re developing a prototype or scaling to low-volume production, our advanced CNC machining capabilities ensure consistent quality, repeatability, and rapid turnaround. Our manufacturing process integrates precision milling, turning, and multi-axis machining with rigorous quality control, including CMM inspection and material certification traceability. We understand that PH stainless steel requires specialized tooling, optimized cutting parameters, and post-machining heat treatment to achieve target mechanical properties—our engineering team applies deep metallurgical knowledge to every project.

To ensure optimal results, we recommend early engagement during the design phase. Our engineers can support Design for Manufacturability (DFM) analysis, material selection guidance, and heat treatment planning specific to your application requirements. This proactive collaboration minimizes iterations, reduces lead times, and lowers overall project costs.

Below is an overview of the most commonly machined PH stainless steel grades and their key mechanical properties post-heat treatment:

| Alloy | Condition | Tensile Strength (MPa) | Yield Strength (0.2%, MPa) | Hardness (HRC) | Corrosion Resistance | Common Applications |

|———-|———|————————|—————————-|—————-|———————–|———————-|

| 17-4 PH | H900 | ≥1310 | ≥1170 | 39–44 | High | Aerospace fittings, valves, shafts |

| 15-5 PH | H900 | ≥1380 | ≥1205 | 40–45 | High | Landing gear, actuators |

| Custom 465® | H900 | ≥1585 | ≥1480 | 46–50 | Moderate | Defense, high-stress components |

All materials are sourced from certified suppliers, with full mill test reports available upon request. We support NDT, passivation, and precision surface finishing options to meet industry-specific standards, including ASTM, AMS, and ISO.

Starting your project with Honyo Prototype is simple. Share your CAD files, technical drawings, or material specifications, and our team will provide a comprehensive quote with DFM feedback within 24 hours. We support prototyping and batch production runs with delivery options tailored to your timeline.
