Manufacturing Insight: Stainless Sheet Metal Fabrication

Stainless Sheet Metal Fabrication: Precision Engineering for Demanding Applications

Stainless steel sheet metal fabrication represents a cornerstone of modern precision manufacturing, essential for industries requiring exceptional corrosion resistance, structural integrity, and aesthetic finish. At Shenzhen Honyo Prototype, we leverage advanced capabilities to transform stainless steel sheets into complex, high-performance components meeting stringent aerospace, medical, semiconductor, and industrial equipment specifications. The inherent properties of stainless alloys—particularly their tendency for work hardening during forming and susceptibility to heat-affected zone (HAZ) sensitization during welding—demand specialized process control. Our expertise lies in mitigating these challenges through optimized tooling design, precise parameter management, and rigorous material handling protocols to ensure dimensional stability and preserve critical material properties throughout the fabrication sequence.

Our comprehensive in-house process begins with precision laser or fiber cutting, achieving intricate geometries with minimal heat input and burr formation on grades ranging from common 304/304L and 316/316L to specialized alloys like 17-4 PH. This is followed by precision forming using CNC press brakes equipped with urethane pads and custom tooling to manage springback and avoid surface marring, critical for maintaining the passive oxide layer. For complex 3D shapes, our hydroforming capabilities provide superior control over wall thinning and surface finish compared to traditional stamping. Welding operations, primarily TIG and laser welding, are performed in controlled environments by certified technicians utilizing back-purging and interpass temperature monitoring to prevent oxidation and carbide precipitation, ensuring weld integrity meets ASTM A240 and ASME BPVC standards. Secondary processes including vibratory deburring, precision grinding, electropolishing, and passivation are meticulously applied to achieve required surface finishes (Ra values down to 0.2 µm) and restore optimal corrosion resistance.

Honyo Prototype distinguishes itself through integrated engineering support from Design for Manufacturability (DFM) analysis through final inspection. Our technical team collaborates early with clients to optimize part geometry for stainless steel’s unique behavior, reducing lead times and eliminating costly iterations. Advanced metrology, including CMM and optical comparators, validates critical dimensions against tight tolerances essential for assembly-critical components. We maintain strict material traceability (MTRs) and adhere to ISO 9001:2015 quality management systems, providing clients with documented assurance of component reliability.

Key Stainless Steel Fabrication Capabilities at Honyo Prototype

| Parameter | Capability Range | Key Standards/Notes |

| :—————– | :———————————– | :——————————————- |

| Material Thickness | 0.5 mm – 6.0 mm | 304/304L, 316/316L, 430, 17-4 PH, others |

| Cutting Tolerance | ±0.05 mm (laser), ±0.1 mm (punch) | Burr height < 10% material thickness |

| Forming Tolerance | ±0.1° angular, ±0.2 mm linear | Springback compensation integrated in CAM |

| Welding | TIG, Laser, Spot | ASME Section IX, ISO 15614-1 compliant |

| Surface Finish | 2B, BA, #4, #8, Electropolished | Ra 0.2 µm – 3.2 µm achievable |

| Max Part Size | 1500 mm x 3000 mm (cutting/forming) | Handling capacity for large assemblies |

This combination of material science understanding, state-of-the-art equipment, and rigorous process control enables Honyo Prototype to deliver stainless sheet metal components that consistently exceed performance expectations in the most demanding operational environments. We transform complex design requirements into reliable, high-quality fabricated solutions.

Technical Capabilities

Shenzhen Honyo Prototype provides advanced stainless sheet metal fabrication services, engineered to meet the precision and durability demands of industrial, medical, and commercial applications. Our technical capabilities span laser cutting, CNC bending, and precision welding, ensuring high repeatability and tight tolerance control across low to medium volume production runs. We specialize in working with a range of stainless steel grades, including 304, 304L, 316, 316L, and 430, supporting both standard and custom fabrication requirements.

Our fiber laser cutting systems deliver clean, burr-free edges with minimal heat distortion. Capable of processing stainless steel up to 25 mm thick, we maintain tight dimensional control and high edge quality suitable for both structural and aesthetic components. CNC press brakes equipped with automatic tool changers and backgauges enable accurate forming of complex geometries, including sharp bends, hemmed edges, and offset features. All bending operations are supported by offline programming to optimize setup time and consistency.

For joining operations, we utilize TIG (GTAW) and MIG (GMAW) welding techniques, selected based on joint design, material thickness, and finish requirements. TIG welding is preferred for thin-gauge stainless steel and applications requiring cosmetic welds, while MIG supports higher productivity on thicker sections. All welders are certified to ISO 9606 standards, and post-weld processes such as grinding, polishing, and passivation are available to meet surface finish and corrosion resistance specifications.

We support rapid prototyping and bridge production with fast turnaround times, backed by in-house quality inspection using coordinate measuring machines (CMM), laser scanners, and surface roughness testers. First article inspection reports and process documentation are provided upon request.

The following table outlines our standard technical specifications and tolerances for stainless sheet metal fabrication:

| Process | Material Options | Thickness Range | Standard Tolerance | Notes |

|——————|————————|———————|————————–|——-|

| Laser Cutting | SS 304, 304L, 316, 316L, 430 | 0.5 – 25 mm | ±0.1 mm (up to 3 mm), ±0.2 mm (>3–6 mm), ±0.3 mm (>6 mm) | Kerf allowance: 0.15–0.25 mm; edge squareness ±1° |

| CNC Bending | SS 304, 304L, 316, 316L, 430 | 0.8 – 12 mm | ±0.2° angular, ±0.2 mm linear | Minimum flange: 2.5× material thickness + R; springback compensated |

| TIG Welding | SS 304, 304L, 316, 316L | 0.8 – 6 mm | ±0.5 mm gap control | Full or spot weld; back purging available for critical joints |

| MIG Welding | SS 304, 316 | 2 – 12 mm | ±0.8 mm positional | High deposition rate; suited for structural joints |

All fabricated components are handled in a dedicated stainless steel workspace to prevent cross-contamination with carbon steel. We comply with ISO 9001:2015 quality management standards and support DFMA reviews to optimize manufacturability and cost-efficiency. For detailed project consultation or material certification requests, contact our engineering team directly.

From CAD to Part: The Process

Stainless Sheet Metal Fabrication: Production Process Workflow

Shenzhen Honyo Prototype employs a rigorously defined workflow for stainless steel sheet metal fabrication, ensuring efficiency, quality, and adherence to client specifications from initial inquiry to final part delivery. This integrated process leverages advanced technology and engineering expertise to transform CAD models into precision components, specifically addressing the unique challenges of stainless steel alloys such as work hardening, thermal conductivity, and corrosion resistance requirements.

The workflow commences with the AI-Powered Quoting System. Upon receipt of a client’s CAD file (typically STEP, IGES, or native formats), our proprietary AI engine performs an initial geometric and material analysis. It automatically identifies key features, material type (e.g., 304, 316), thickness, and complexity. Crucially, the system cross-references this data against our extensive production database, current machine capabilities, material costs, and labor rates. This enables the generation of a highly accurate preliminary quote within hours, significantly reducing traditional quoting lead times while providing transparency on cost drivers specific to stainless fabrication, such as laser cutting parameters or required post-weld passivation.

Following client approval of the quote, the project enters the critical Design for Manufacturability (DFM) Review phase, conducted by our senior manufacturing engineering team. This is not a passive check but an active collaboration. Engineers meticulously analyze the CAD model for stainless steel-specific manufacturability. Key considerations include verifying minimum bend radii to prevent cracking (especially critical in austenitic grades), assessing hole-to-edge and hole-to-bend spacing tolerances, evaluating weld joint accessibility and potential distortion due to stainless’s lower thermal conductivity, and confirming surface finish requirements (e.g., #4 brush, BA) are achievable with our processes. Potential conflicts, such as overly tight tolerances conflicting with stainless springback characteristics or features prone to burring during laser cutting, are identified. Honyo provides actionable feedback and collaborates with the client on design optimizations before any material is cut, preventing costly rework and delays. This proactive DFM step is fundamental to achieving on-time delivery and optimal part quality for stainless components.

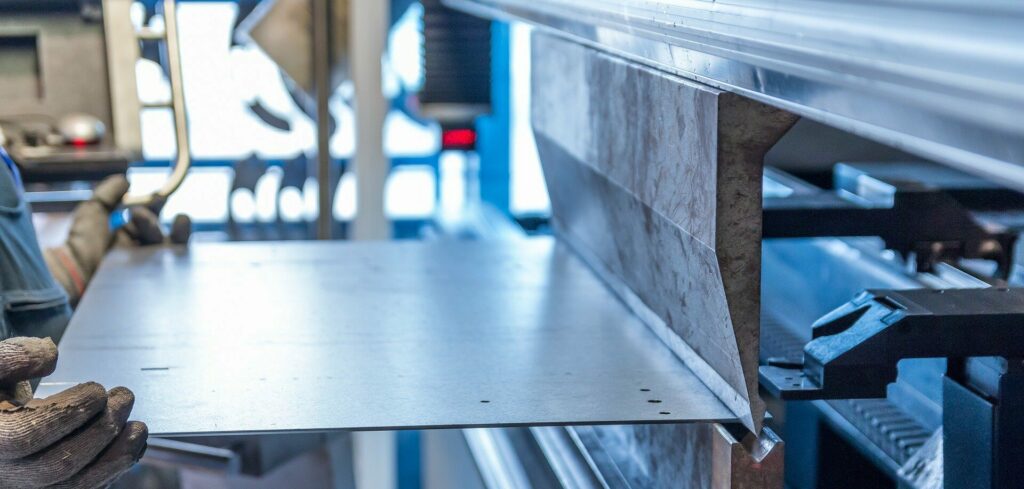

Upon DFM sign-off, the project moves seamlessly into Production. The approved CAD data drives our state-of-the-art CNC equipment. Laser cutting utilizes high-power fiber lasers with optimized gas parameters (N2 for clean edges on thin gauges, O2 for thicker sections) to minimize heat-affected zones and dross on stainless. Precision press brakes, often with CNC-controlled backgauges and coining capabilities, form parts while accounting for stainless steel’s significant springback. Welding employs TIG or pulsed MIG processes with stringent inert gas shielding to prevent oxidation and maintain corrosion resistance. Secondary operations like tapping, hardware insertion, and surface finishing (grinding, polishing, passivation) follow, all adhering to documented procedures validated for stainless alloys. Throughout production, in-process inspections verify critical dimensions and material integrity, culminating in a comprehensive final quality check against the original specifications before shipment.

Critical parameters for common stainless steel grades are managed according to the following standards:

| Parameter | Grade 304 / 304L | Grade 316 / 316L | Notes for Fabrication |

| :—————– | :————— | :————— | :—————————————- |

| Typical Thickness | 0.5mm – 6.0mm | 0.5mm – 6.0mm | Thicker sections require specialized tooling |

| Min. Bend Radius | 0.8 x Thickness | 1.0 x Thickness | Increases with material hardness/grade |

| Laser Power (1kW) | 1.0mm: 100% | 1.0mm: 100% | N2 assist for <3mm; O2 for >3mm common |

| | 3.0mm: 65% | 3.0mm: 60% | |

| Springback Factor | 2° – 5° | 2° – 6° | Must be compensated in bending programs |

| Critical QC Focus | Edge Dross, Weld Color | Weld Integrity, Passivation | Blue/purple weld discoloration indicates oxidation |

This integrated CAD-to-Part workflow, underpinned by AI efficiency, rigorous stainless-specific DFM, and precision-controlled production, ensures Shenzhen Honyo Prototype delivers high-integrity stainless steel components that meet stringent functional and aesthetic requirements on schedule.

Start Your Project

Start Your Stainless Sheet Metal Fabrication Project with Honyo Prototype

When it comes to precision and durability in manufacturing, stainless sheet metal fabrication stands as a cornerstone for industries ranging from medical and aerospace to industrial equipment and consumer electronics. At Shenzhen Honyo Prototype, we specialize in delivering high-accuracy, low-to-mid volume sheet metal components tailored to your exact specifications. Whether you’re developing a prototype or scaling into production, our advanced fabrication capabilities ensure your design is built to perform.

Stainless steel is prized for its corrosion resistance, strength-to-weight ratio, and aesthetic finish—making it ideal for applications where reliability and longevity are non-negotiable. Our expertise spans a range of stainless steel grades, including 304, 304L, 316, and 316L, allowing us to match material properties to your operational environment. From laser cutting and CNC punching to precision bending and automated welding, every step of our process is controlled to maintain tight tolerances and consistent quality.

We understand that bringing a new product to market requires more than just machinery—it demands collaboration. That’s why our engineering team works closely with yours from the earliest stages. We offer Design for Manufacturability (DFM) feedback to optimize your parts for cost efficiency, structural integrity, and ease of assembly. Our goal is to help you avoid costly redesigns and delays by identifying potential issues before production begins.

At Honyo Prototype, we pride ourselves on fast turnaround times without compromising on quality. With in-house tooling, automated fabrication cells, and a skilled team of technicians, we can deliver prototypes in as little as 3–5 days and support scalable production runs with consistent repeatability.

To ensure transparency and traceability, we provide full documentation, including inspection reports, material certifications, and first-article inspection (FAI) data upon request. Our facility adheres to ISO 9001 quality management standards, reinforcing our commitment to excellence in every component we produce.

Below are key technical specifications for our stainless sheet metal fabrication services:

| Parameter | Capability |

|—————————-|———————————————|

| Material Types | SS304, SS304L, SS316, SS316L |

| Thickness Range | 0.5 mm – 3.0 mm |

| Tolerance (Bending) | ±0.1 mm |

| Tolerance (Cutting) | ±0.05 mm |

| Max Part Size | 1200 mm × 2400 mm |

| Finishing Options | Brushed, Polished, Bead Blast, Passivated |

| Welding Methods | TIG, MIG, Spot Welding |

| Secondary Operations | Hardware Insertion, Tapping, Deburring |

Starting your project is simple. Share your CAD files, drawings, or specifications with our team, and we’ll provide a detailed quote with DFM insights—typically within 12 hours.

Contact Susan Leo today at info@hy-proto.com to begin your stainless sheet metal fabrication project. Let Honyo Prototype be your trusted partner in turning innovative designs into high-performance, real-world solutions.
