Manufacturing Insight: Stainless Steel Sheet Metal Fabrication

Manufacturing Insight: Stainless Steel Sheet Metal Fabrication at Honyo Prototype

Stainless steel remains a cornerstone material for demanding applications across medical, aerospace, and industrial sectors due to its exceptional corrosion resistance, high strength-to-weight ratio, and superior hygiene properties. Effective fabrication, however, demands precise control over material behavior and process parameters to overcome inherent challenges like work hardening, thermal distortion during welding, and stringent surface finish requirements. At Shenzhen Honyo Prototype, our specialized sheet metal capabilities are engineered to transform complex stainless steel designs into high-integrity components, ensuring performance meets the exacting standards of critical applications.

The fabrication process begins with meticulous material selection. We routinely process common grades including 304/L, 316/L, and 430, leveraging their specific attributes for corrosion resistance or formability. Precision laser cutting forms the foundation, where our TruLaser series systems achieve clean, burr-minimized edges with minimal heat-affected zones, critical for maintaining the passive layer integrity of stainless steel. Subsequent bending operations utilize CNC press brakes with crowning systems and calibrated tooling to counteract springback and achieve tight angular tolerances, even in harder grades. Welding represents a particular focus area; our TIG and robotic MIG processes employ strict inert gas shielding protocols, interpass temperature control, and post-weld passivation to prevent contamination, sensitization, and ensure seamless, corrosion-resistant joints. Surface finishing, whether #4 brushed, satin, or mirror polish, is performed under controlled conditions to meet both functional and aesthetic specifications without compromising material integrity.

Honyo Prototype differentiates itself through integrated process control and deep material expertise. Our facility utilizes real-time monitoring during forming and welding to mitigate distortion, coupled with comprehensive in-process inspection using CMMs and optical comparators. We prioritize material traceability from certified mills and implement strict handling protocols to prevent iron contamination – a critical factor often overlooked in stainless steel processing. This focus on metallurgical best practices ensures components consistently achieve required mechanical properties and surface passivation.

Our technical capabilities for stainless steel sheet metal fabrication are structured to support rapid prototyping through low-volume production:

| Parameter | Capability Range | Standard Tolerance |

|——————–|————————————–|————————–|

| Material Grades | 304/L, 316/L, 430, others on request | Mill Certificate Traceable |

| Thickness Range | 0.5 mm – 6.0 mm | ±0.05 mm (cut), ±0.1° (bend) |

| Max Part Size | 1500 mm x 3000 mm | |

| Welding | TIG, MIG (Robotic & Manual) | AWS D1.6 / ASME Sec IX |

| Surface Finishes | #4 Brush, Satin, Mirror Polish, Bead Blast | Per ASTM A480 |

By combining advanced equipment, rigorous process validation, and metallurgical understanding, Honyo Prototype delivers stainless steel fabrications where dimensional accuracy, structural integrity, and surface quality are non-negotiable. We partner with design and engineering teams early to optimize manufacturability, reduce lead times, and ensure the final component performs flawlessly in its operational environment. Trust Honyo to translate your stainless steel sheet metal requirements into reality with precision and reliability.

Technical Capabilities

Shenzhen Honyo Prototype offers precision stainless steel sheet metal fabrication services tailored to meet the demanding requirements of industrial, medical, automotive, and aerospace applications. Our technical capabilities span laser cutting, bending, and welding—each process engineered for repeatability, dimensional accuracy, and structural integrity. Utilizing state-of-the-art equipment and adhering to rigorous quality control standards, we deliver components that meet or exceed client specifications.

Laser cutting is performed using high-power fiber laser systems capable of processing a wide range of stainless steel thicknesses with clean, burr-free edges. Our machines support complex geometries and tight tolerances, enabling rapid prototyping and low-to-mid volume production. All cutting operations are CNC-controlled, ensuring consistent part-to-part uniformity and minimal material waste. We support both 2D and 3D laser cutting for specialized applications requiring beveled or contoured features.

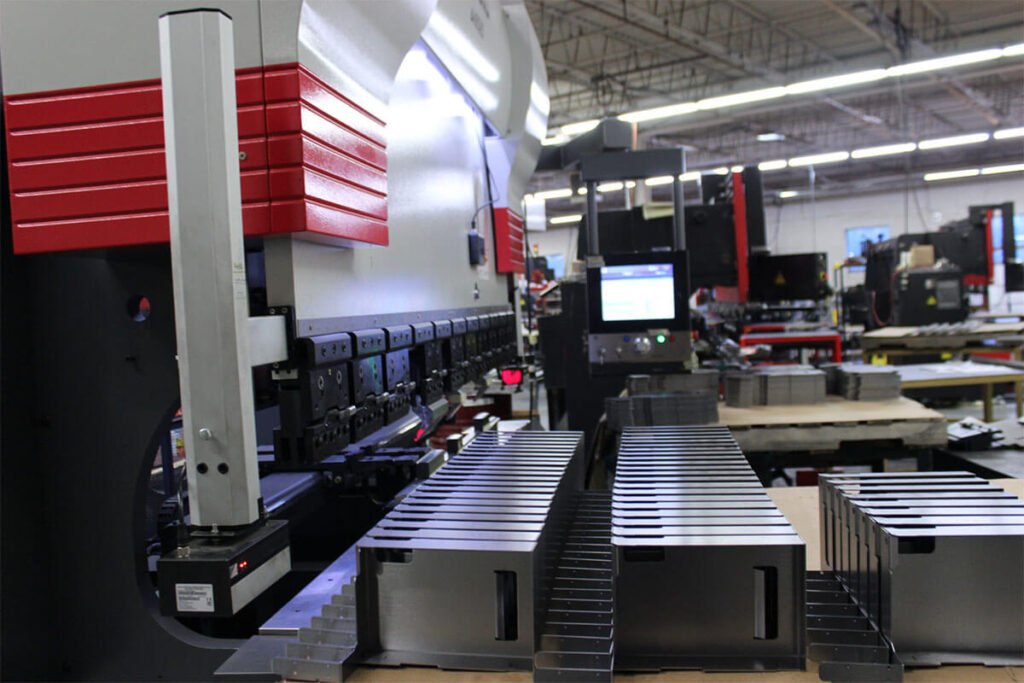

Bending operations are executed on CNC press brakes equipped with precision backgauges and tooling optimized for stainless steel. Our bending capabilities accommodate various bend radii and angular tolerances, with in-process inspection ensuring compliance with geometric dimensioning and tolerancing (GD&T) standards. We implement bend allowance compensation and springback correction algorithms to maintain accuracy across multiple bends and complex assemblies. Prototyping and production runs benefit from our ability to maintain tight angular and linear tolerances.

Welding services include TIG (GTAW) and MIG (GMAW) processes, with a focus on TIG for high-integrity, cosmetic, and precision welds. All welding is performed by certified technicians in controlled environments to prevent contamination. We follow established welding procedure specifications (WPS) and support full traceability of materials and weld parameters. Post-weld processes such as grinding, polishing, and passivation are available to achieve required surface finishes and corrosion resistance.

The following table outlines our standard technical specifications and tolerances for stainless steel fabrication:

| Process | Material Grades Supported | Thickness Range | Tolerance (Linear) | Angular Tolerance | Notes |

|—————–|———————————-|———————|——————–|——————-|——-|

| Laser Cutting | 304, 304L, 316, 316L, 430 | 0.5 – 25 mm | ±0.1 mm | — | Burr-free edges, kerf allowance: 0.15–0.2 mm |

| CNC Bending | 304, 304L, 316, 316L | 0.8 – 15 mm | ±0.2 mm | ±1° | Minimum flange: 3× material thickness + R |

| TIG Welding | 304, 304L, 316, 316L | 0.5 – 12 mm | ±0.5 mm (distortion) | ±2° (alignment) | Full penetration welds, post-weld clean |

| MIG Welding | 304, 304L, 316, 316L | 1.0 – 15 mm | ±0.6 mm (distortion) | ±2.5° (alignment) | High deposition rate, suited for thick sections |

All fabricated components undergo rigorous inspection using coordinate measuring machines (CMM), optical comparators, and visual standards. We support secondary operations including tapping, countersinking, surface finishing (brushed, mirror, No. 4 polish), and hardware insertion. Shenzhen Honyo Prototype combines advanced manufacturing technology with engineering expertise to deliver reliable, high-quality stainless steel fabrications for critical applications.

From CAD to Part: The Process

Stainless Steel Sheet Metal Fabrication: Production Process Workflow

At Shenzhen Honyo Prototype, our stainless steel sheet metal fabrication process integrates digital precision with hands-on engineering expertise to transform CAD models into certified production parts. This workflow ensures cost efficiency, dimensional accuracy, and material integrity from quotation through delivery. The standardized sequence—AI-Powered Quoting, Design for Manufacturability (DFM) analysis, and Production Execution—minimizes lead times while adhering to ISO 9001 quality standards.

AI-Powered Quoting
Upon CAD file receipt (STEP, IGES, or native formats), Honyo’s proprietary AI engine performs an initial manufacturability scan. This system evaluates geometric complexity, material utilization, and baseline process feasibility against our stainless steel capabilities. Key parameters assessed include minimum hole diameters relative to sheet thickness, bend allowances, and nested part density. The AI generates a preliminary cost estimate within 2 hours, highlighting potential red flags such as non-standard radii or excessive secondary operations. Clients receive actionable feedback before formal order placement, reducing revision cycles by up to 40%.

Design for Manufacturability (DFM) Engineering
Following quote acceptance, Honyo’s manufacturing engineers conduct a rigorous DFM review. This phase involves direct collaboration with the client’s design team to optimize features for stainless steel’s unique properties—work hardening, springback, and thermal sensitivity. Critical adjustments may include modifying bend radii to prevent cracking, standardizing fastener patterns for automated tapping, or repositioning weld seams to minimize distortion. All DFM recommendations reference ISO 2768-mK tolerances and material-specific guidelines. Client approval of the DFM report is mandatory prior to production launch, ensuring alignment on critical-to-quality (CTQ) dimensions.

Production Execution
Approved designs enter Honyo’s integrated production cell. Laser cutting utilizes 4kW fiber lasers with ±0.1mm positional accuracy on sheets up to 6mm thick. Bending employs CNC press brakes with real-time springback compensation, achieving angular tolerances of ±0.5°. For welded assemblies, TIG processes with argon shielding gas maintain corrosion resistance in 304/316 grades. Final finishing includes vibratory deburring, passivation per ASTM A967, and optional satin polishing or bead blasting. Each part undergoes first-article inspection (FAI) with CMM validation against the original CAD model before batch release.

Material performance characteristics directly influence process parameters. The table below summarizes key stainless steel grades we routinely fabricate:

| Grade | Typical Thickness Range | Minimum Bend Radius (t=1mm) | Common Surface Finishes |

|——-|————————–|—————————–|————————–|

| 304 | 0.5–6.0 mm | 0.8t | #4 Brushed, 2B Mill, Passivated |

| 316 | 0.8–5.0 mm | 1.0t | Electropolished, #4 Brushed |

| 430 | 0.6–4.0 mm | 0.8t | Matte, Satin, Passivated |

Honyo’s closed-loop workflow—from AI-driven quoting through DFM collaboration to precision production—ensures stainless steel components meet stringent functional and aesthetic requirements. By embedding manufacturability checks early and leveraging automated process control, we deliver prototypes and low-volume production parts with repeatable quality, typically reducing time-to-part by 25% versus industry benchmarks. All finished components include material traceability documentation and a full FAI report for audit compliance.

Start Your Project

Start Your Stainless Steel Sheet Metal Fabrication Project with Honyo Prototype

When it comes to precision and durability in sheet metal fabrication, stainless steel stands out as a premier material choice for industrial enclosures, medical devices, aerospace components, and high-end consumer products. At Shenzhen Honyo Prototype, we specialize in transforming your design concepts into high-quality, fully functional stainless steel prototypes and production parts. Whether you’re in the early prototyping phase or scaling for low-to-mid volume production, our advanced manufacturing capabilities ensure accuracy, repeatability, and fast turnaround.

Our full-service sheet metal fabrication process includes laser cutting, CNC punching, precision bending, welding, surface finishing, and comprehensive quality inspection—all performed in-house using state-of-the-art machinery and ISO-compliant standards. We work with a wide range of stainless steel grades, including 304, 316, 430, and custom alloys, to meet your specific mechanical, corrosion-resistant, and aesthetic requirements.

To get started, simply provide your design files in DXF, DWG, STEP, or IGES format. Our engineering team will conduct a detailed Design for Manufacturability (DFM) review to optimize your part for performance, cost-efficiency, and ease of assembly. We support tight tolerances down to ±0.1 mm and can fabricate parts ranging from 0.5 mm to 6.0 mm in thickness, with maximum blank sizes up to 1500 x 3000 mm.

| Specification | Capability |

|—————|————|

| Material Types | Stainless Steel (304, 316, 430, etc.) |

| Thickness Range | 0.5 mm – 6.0 mm |

| Max Blank Size | 1500 mm × 3000 mm |

| Tolerance | ±0.1 mm (standard) |

| Finishing Options | Brushed, Polished, Bead Blast, Passivated, Powder Coating |

| Production Volume | Prototype to Mid-Volume |

We understand that time-to-market is critical. That’s why Honyo Prototype offers rapid quoting, same-week prototyping, and express delivery options to keep your project on schedule. Our team in Shenzhen is equipped to handle complex geometries, tight radii, and multi-stage assemblies with precision and consistency.

Partnering with us means gaining access to expert technical support, transparent communication, and manufacturing solutions tailored to your unique needs. Whether you’re developing a single prototype or preparing for batch production, we are committed to delivering parts that meet the highest standards of quality and performance.

Ready to bring your stainless steel fabrication project to life?
Contact Susan Leo today at info@hy-proto.com to request a free quote, submit your design files, or discuss your project specifications. At Honyo Prototype, we don’t just manufacture parts—we help engineers and product developers turn ideas into reality. Let’s build something exceptional together.
